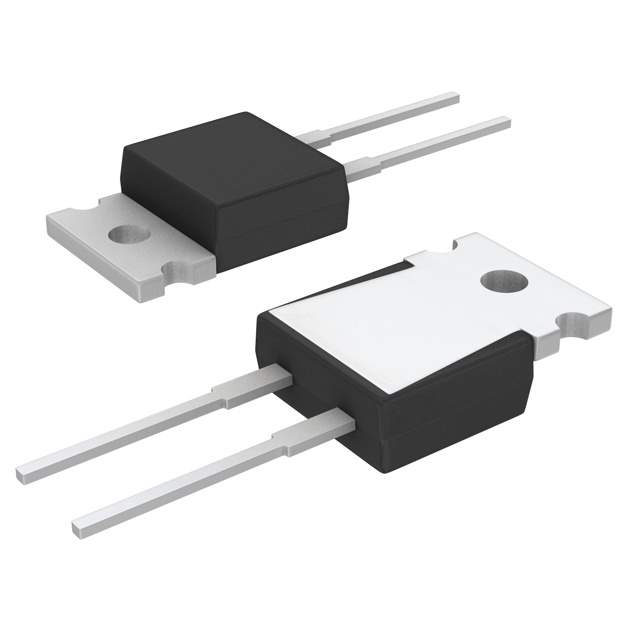

PF2203-75RF1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1168697-PF2203-75RF1
Manufacturer Riedon
Category Resistors Through Hole Resistors
Package Tube
Series PF2200
Product Status Active
Operating Temperature -55°C ~ 155°C
Package / Case TO-220-2
Supplier Device Package TO-220
Size / Dimension 0.417" L x 0.177" W (10.60mm x 4.50mm)
Ultra Librarian 3D Model Ultra Librarian PF2203-75RF1 CAD Model

Description

The PF2200 is a through-hole resistor from Riedon.

  • Manufacturer: Riedon
  • Package / Case: TO-220-2
  • Supplier Device Package: TO-220
  • Size: 0.417" L x 0.177" W (10.60mm x 4.50mm)
  • Operating Temperature: -55°C to 155°C
  • Mounting Type: Through Hole
