Same model may have multiple batches, images only for reference.

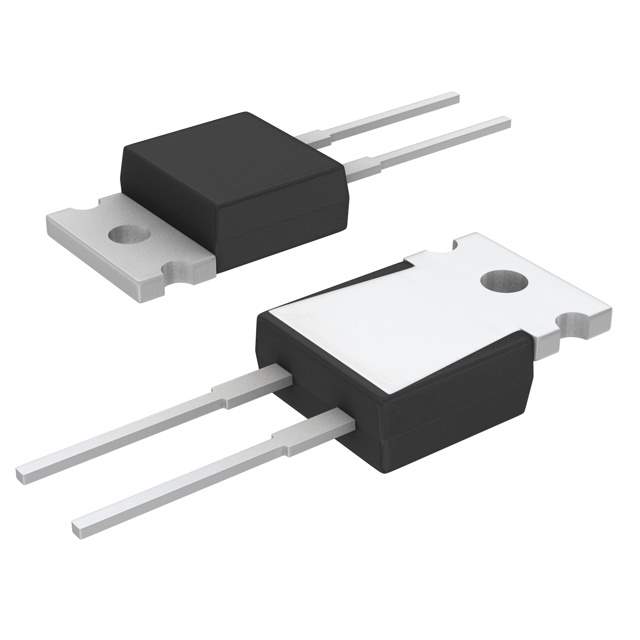

PF2203-20KF1 Real Image
Same model may have multiple batches, images only for reference.

PF2203-20KF1

Part No PF2203-20KF1
Manufacturer Riedon
Catalog Through Hole Resistors
Description RES 20K OHM 1% 35W TO220 / 20 kOhms ±1% 35W Through Hole Resistor TO-220-2 Current Sense, Flame Proof, Pulse Withstanding, Safety Thin Film
Datasheet
PF2203-20KF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Riedon
Series PF2200
Package Tube
Resistance 20 kOhms
Tolerance ±1%
Power (Watts) 35W
Composition Thin Film
Features Current Sense, Flame Proof, Pulse Withstanding, Safety
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case TO-220-2
Supplier Device Package TO-220
Size / Dimension 0.417" L x 0.177" W (10.60mm x 4.50mm)
Height - Seated (Max) 0.591" (15.00mm)
Number of Terminations 2
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.29.0000
California Prop 65 Warning Information
Win Source Part Number 1348054-PF2203-20KF1
Ultra Librarian 3D Model Ultra Librarian PF2203-20KF1 CAD Model

Description

The 1348054-PF2203-20KF1 resistor is a through-hole resistor from Riedon's PF2200 series.

  • Series: PF2200
  • Manufacturer: Riedon
  • Resistance: 20 kOhms
  • Power Rating: 35W
  • Technology: Thin Film
  • Tolerance: ±1%
  • Features: Flameproof, Pulse Withstanding, Safe
  • Packaging: Tube
  • Package/Case: TO-220-2
  • Terminations: 2
  • Temperature Coefficient: ±50ppm/°C
  • Operating Temperature: -55°C to 155°C
  • Dimensions: 0.417" L x 0.177" W (10.60mm x 4.50mm)
  • REACH: Affected
  • ECCN: EAR99
