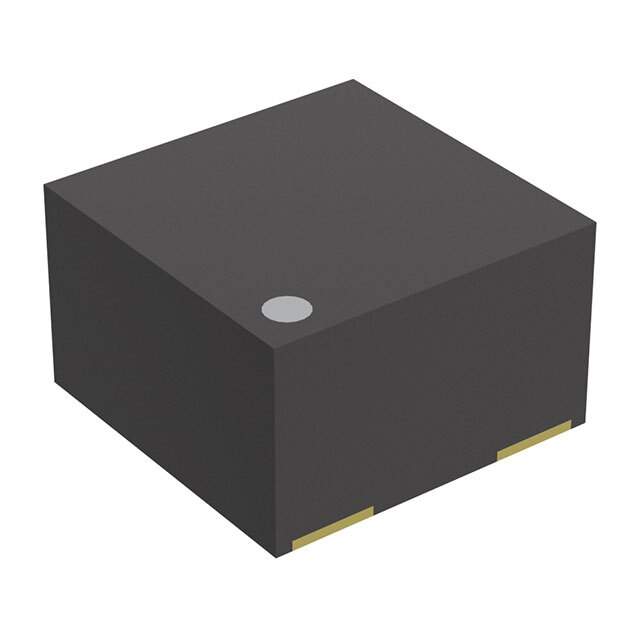

The Ricoh R3117K293C is a high-accuracy voltage detector IC designed for precise voltage monitoring and system reset functionality in a broad spectrum of electronic applications. As a product of Ricoh, a reputable provider of power management solutions, this IC plays a critical role in maintaining system stability and preventing malfunctions by accurately monitoring the input voltage and triggering a reset signal when it falls below a predefined threshold.

Applications

• Microcontroller Systems: Ensures proper microcontroller operation by resetting it during voltage drops, preventing erratic behavior.
• Power Supply Monitoring: Monitors the output voltage of power supplies, providing a reset signal if the voltage deviates from the acceptable range.
• Battery-Operated Equipment: Prevents deep discharge of batteries by shutting down the system when the battery voltage reaches a critical low level.
• Industrial Automation: Provides reliable voltage monitoring for industrial equipment, safeguarding against voltage-related failures.
• Automotive Electronics: Monitors voltage levels in various automotive systems, ensuring the proper operation of critical electronic components.

Features

• High-Precision Voltage Detection: Delivers accurate voltage monitoring, essential for reliable system performance.
• Low Current Consumption: Minimizes power drain, making it suitable for battery-powered and energy-efficient applications.
• Built-in Hysteresis: Prevents oscillations and ensures a stable reset signal by providing a defined difference between the rising and falling threshold voltages.
• Open-Drain Output: Offers versatile interfacing options with various logic levels and pull-up resistor configurations.
• Compact Package: Available in small packages, making it suitable for space-constrained designs.

Benefits

• Improved System Reliability: Prevents malfunctions and data corruption caused by voltage fluctuations.
• Extended Battery Life: Low power consumption extends battery life in portable devices.
• Simplified Design: Integrated functions reduce the need for external components, simplifying circuit design.
• Enhanced System Protection: Protects sensitive components from damage resulting from undervoltage conditions.
• Cost-Effective: Offers reliable voltage monitoring at a competitive price.

The R3117K293C functions by continuously monitoring the input voltage. When the voltage drops below the specified detection threshold (2.9V in this particular model), the IC asserts a reset signal. The built-in hysteresis feature prevents the output from rapidly switching when the input voltage is close to the threshold level, ensuring a stable and clean reset. Once the voltage recovers above the threshold plus the hysteresis voltage, the reset signal is de-asserted after a predefined delay period. The open-drain output configuration provides flexibility in interfacing with different logic levels and external circuitry by using a pull-up resistor. The small package size allows for integration into compact devices where board space is limited. The low supply current makes this IC highly suitable for battery-powered applications, extending the operating time of the device. The high-precision voltage detection ensures reliable system operation and minimizes the risk of false resets. The R3117K293C provides a robust and efficient solution for voltage monitoring and reset generation, vital for the reliable operation of a variety of electronic systems.
