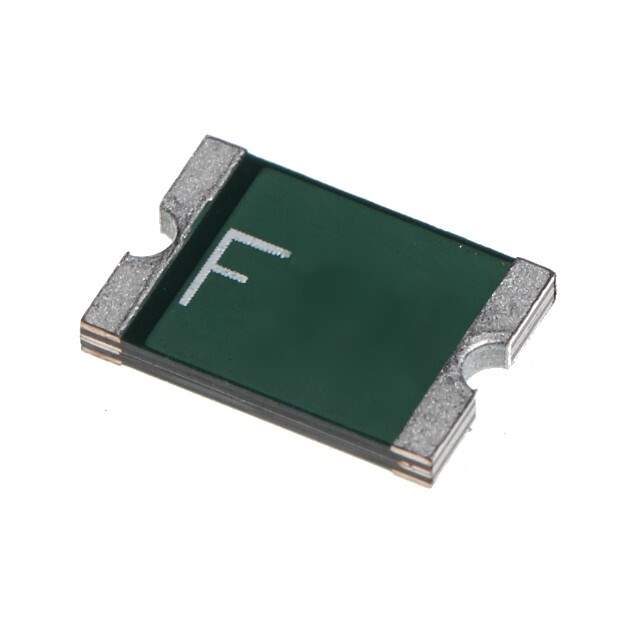

FSMD200-24-2920-R

Name: FSMD200-24-2920-R
Brand: RFE/Fuzetec
SKU: 1150729
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FSMD200-24-2920-R
Manufacturer	RFE/Fuzetec
Catalog	PTC Resettable Fuses
Description	RESETTABLE FUSE - SMD, 2920 SIZE / PTC Resettable Fuse 24V 2 A Ih Surface Mount 2920 (7351 Metric), Concave
Datasheet	FSMD200-24-2920-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	RFE/Fuzetec
Series	FSMD2920
Package	Tape & Reel (TR)
Voltage - Max	24V
Current - Max	100 A
Current - Hold (Ih) (Max)	2 A
Current - Trip (It)	4 A
Time to Trip	5 s
Resistance - Initial (Ri) (Min)	35 mOhms
Resistance - Post Trip (R1) (Max)	120 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting	SMD (SMT)
Package / Case	2920 (7351 Metric), Concave
Dimension	0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max)	0.031" (0.80mm)
Approval Agency	cUL, TUV, UL
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	3451-FSMD200-24-2920-RTR
Standard Package	50
Win Source Part Number	1150729-FSMD200-24-2920-R
Ultra Librarian 3D Model	Ultra Librarian FSMD200-24-2920-R CAD Model

Alternative Products

Description

The FSMD2920 is a PTC Resettable Fuse designed to protect the circuit from over-current. It is a SMD (SMT) mounted component and has a maximum voltage rating of 24V and a maximum current rating of 100A.

Current Hold (Ih): 2A
Current Trip (It): 4A
Time to Trip: 5s
Package/Case: 2920 (7351 Metric), Concave
Temperature Range: -40°C to 85°C
Resistance - Initial (Ri): 35 mOhms
Resistance - Post Trip (R1): 120 mOhms
Approvals: cUL, TUV, UL
Other Names: 3451-FSMD200-24-2920-RTR
