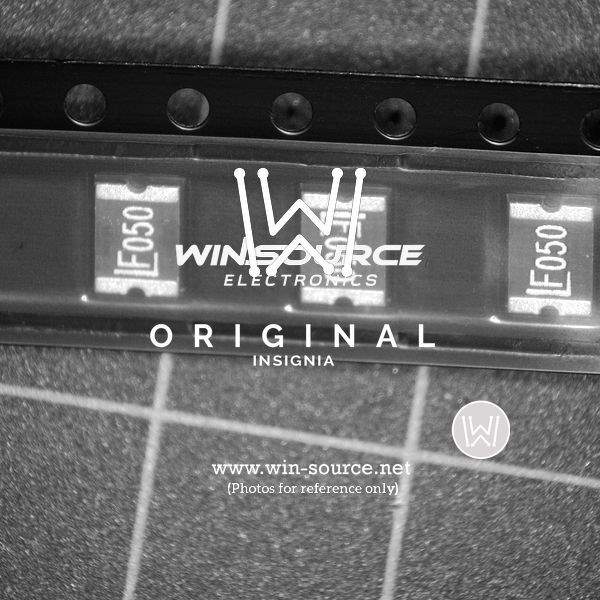

FSMD050-R Real Image FSMD050-R real image4263
Same model may have multiple batches, images only for reference.
FSMD050-R Real Image FSMD050-R real image4263
FSMD050-R Real Image FSMD050-R real image4263
Same model may have multiple batches, images only for reference.

FSMD050-R

Part No FSMD050-R
Manufacturer RFE/Fuzetec
Catalog PTC Resettable Fuses
Description RESETTABLE FUSE - SMD, 1812 SIZE
Datasheet
FSMD050-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr RFE/Fuzetec
Series FSMD1812
Package Tape & Reel
Product Status Active
Voltage - Max 16V
Current - Hold (Ih) (Max) 500 mA
Current - Trip (It) 1 A
Current - Max 100 A
Time to Trip 150 ms
Resistance - Initial (Ri) (Min) 150 mOhms
Resistance - Post Trip (R1) (Max) 1 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric), Concave
Size / Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.026" (0.65mm)
Approval Agency cUL, TUV, UL
Standard Package 50 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 133482-FSMD050-R
Ultra Librarian 3D Model Ultra Librarian FSMD050-R CAD Model

Description

The RFE/Fuzetec 133482-FSMD050-R is a surface mount PTC resettable fuse. It is part of the FSMD1812 series and comes in a tape and reel package.

  • Size: 0.179" L x 0.128" W (4.55mm x 3.24mm)
  • Thickness: 0.026" (0.65mm)
  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Trip Current: 1A
  • Time to Trip: 150 milliseconds
  • Operating Temperature: -40°C to 85°C
  • Initial Resistance: 150 mOhms
  • Post-Trip Resistance: 1 Ohm
  • Approvals: cUL, TUV, and UL
