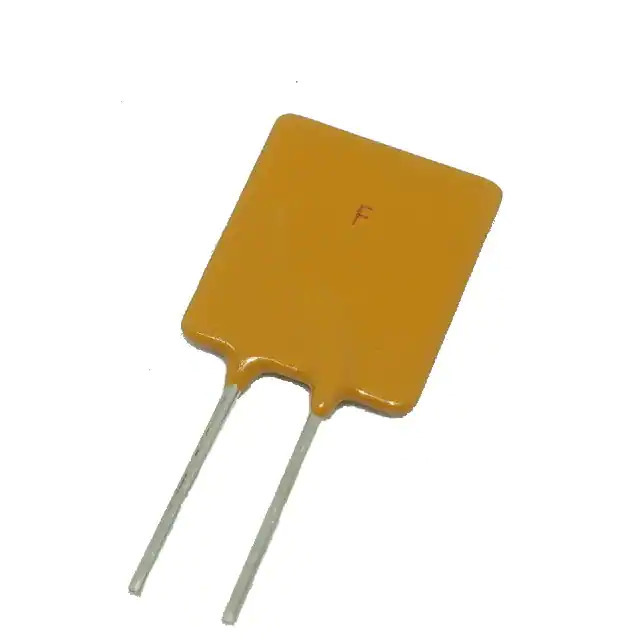

FRU090-30F RFE/Fuzetec
Same model may have multiple batches, images only for reference.

FRU090-30F

Part No FRU090-30F
Manufacturer RFE/Fuzetec
Catalog PTC Resettable Fuses
Description RESETTABLE FUSE - PPTC RADIAL LE / PTC Resettable Fuse 30V 900 mA Ih Through Hole Radial, Disc
Datasheet
FRU090-30F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr RFE/Fuzetec
Series FRU
Package Bulk
Product Status Active
Type -
Voltage - Max 30V
Current - Hold (Ih) (Max) 900 mA
Current - Trip (It) 1.8 A
Current - Max 100 A
Time to Trip 5.9 s
Resistance - Initial (Ri) (Min) 70 mOhms
Resistance - Post Trip (R1) (Max) 220 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.291" L x 0.118" W (7.40mm x 3.00mm)
Height - Seated (Max) 0.480" (12.20mm)
Thickness (Max) -
Lead Spacing 0.201" (5.10mm)
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361789-FRU090-30F
Ultra Librarian 3D Model Ultra Librarian FRU090-30F CAD Model

Description

The FRU090-30F is a circuit protection PTC resettable fuse manufactured by RFE/Fuzetec. It is designed to provide overcurrent protection in electronic devices.

  • Temperature Range: -40°C to 85°C
  • Maximum Current Rating: 100 A
  • Maximum Voltage Rating: 30V
  • Package / Case: Radial, Disc
  • Lead Spacing: 0.201" (5.10mm)
  • Mounting Type: Through Hole
  • Approval Agency: cUL, TUV, UL
  • Resistance: Initially 70 mOhms
  • Post Trip Resistance: 220 mOhms
  • Time to Trip: 5.9 seconds
  • Status: Active
