Same model may have multiple batches, images only for reference.

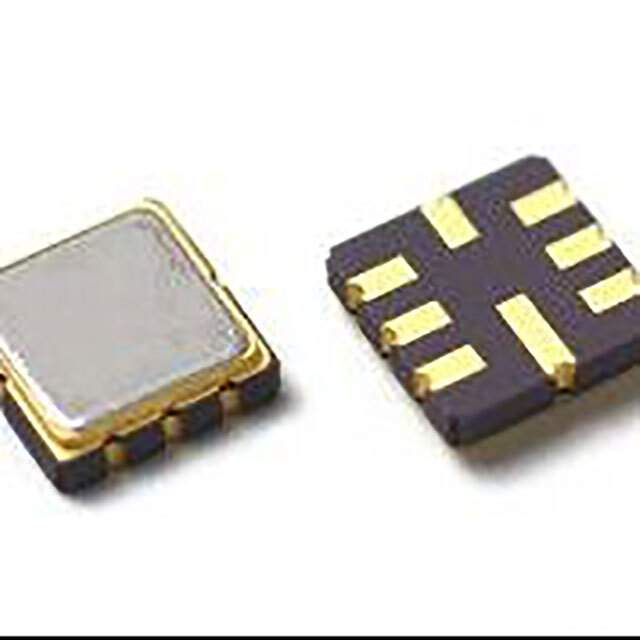

SF2296C Real Image
Same model may have multiple batches, images only for reference.

SF2296C

Part No SF2296C
Manufacturer RF Monolithics, Inc
Catalog SAW Filters
Datasheet
SF2296C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>SAW Filters
Mfr RFMi
Package Tape & Reel (TR),Tape & Reel (TR),Bag
Frequency - Center 312MHz
Bandwidth 300kHz, 750kHz, 1.05kHz
Insertion Loss 1.8dB
Ratings AEC-Q200
Applications General Purpose
Mounting SMD (SMT)
Package / Case 8-SMD, No Lead
Height (Max) 0.067" (1.70mm)
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Base Product Number SF2296
Other Names 2410-SF2296CTR,2410-SF2296C,2410-SF2296CTR2
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1275830-SF2296C
Ultra Librarian 3D Model Ultra Librarian SF2296C CAD Model

Description

The 1275830-SF2296C is a SAW filter designed for general purpose applications.

  • Manufacturer: RFMi
  • Package: Tape & Reel (TR), Tape & Reel (TR), Bag
  • Standard Package: 3,000
  • Mounting: SMD (SMT)
  • AEC-Q200: Rated
  • Height: 0.067" (1.70mm)
  • Insertion Loss: 1.8dB
  • Bandwidth: 300kHz, 750kHz, 1.05kHz
  • Center Frequency: 312MHz
  • Dimension: 0.197" L x 0.197" W (5.00mm x 5.00mm)
  • Package/Case: 8-SMD, No Lead
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.60.0060
  • Also known as: 2410-SF2296CTR, 2410-SF2296C, 2410-SF2296CTR2
