Same model may have multiple batches, images only for reference.

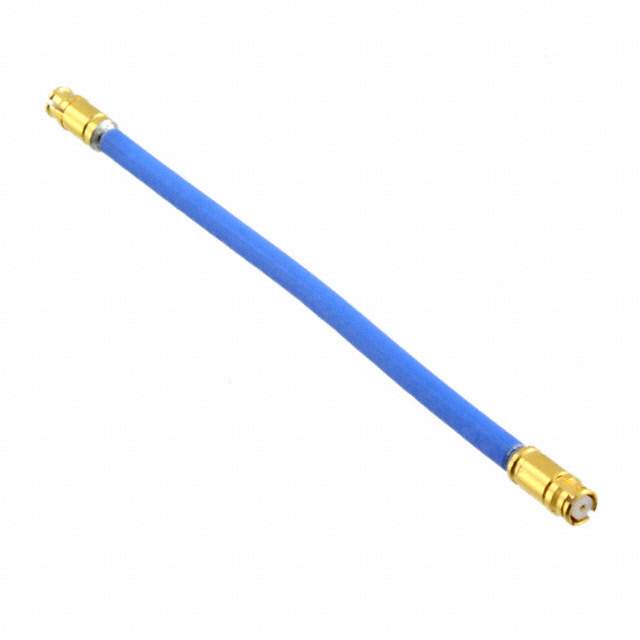

RF2301 Real Image
Same model may have multiple batches, images only for reference.

RF2301

Part No RF2301
Manufacturer RF Micro Devices
Catalog Coaxial Cables (RF)
Description SMP STRT PLUG-PLUG TFLEX 405 CBL
Datasheet
RF2301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Amphenol RF Division
Status Active
Gender Female to Female
Style SMP to SMP
1st Connector SMP Female Plug
2nd Connector SMP Female Plug
Length 8.000" (203.20mm)
Cable Type TFLex-405
Impedance 50 Ohm
Maximum Input Frequency 20GHz
Win Source Part Number 293309-RF2301
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RF2301 CAD Model

Description

The Amphenol RF Division 293309-RF2301 is an active electronic component that is used in cable assemblies.

  • Manufacturer: Amphenol RF Division
  • Win Source Part Number: 293309-RF2301
  • Gender: Female to Female
  • Length: 8.000" (203.20mm)
  • Cable Type: TFLex-405
  • Impedance: 50 Ohm
  • Style: SMP to SMP
  • 1st Connector: SMP Female Plug
  • 2nd Connector: SMP Female Plug
  • Maximum Input Frequency: 20GHz
