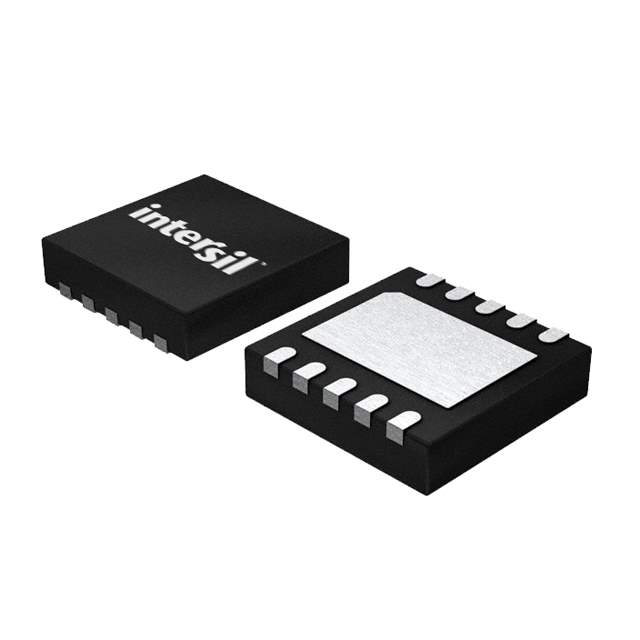

Same model may have multiple batches, images only for reference.

ZL1505ALNNT

Get a Quote

Part No	ZL1505ALNNT
Manufacturer	Renesas Electronics America
Catalog	PMIC - Gate Drivers
Description	Synchronous Step-Down MOSFET Drivers \| IC MOSFET DRIVER SGL 10DFN
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Renesas Electronics America Inc.
Packaging	Tube
Status	Obsolete
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel MOSFET
Supply Voltage (V)	4.5V ~ 7.5V
Logic Voltage - VIL, VIH	1.7V, 3.4V
Current - Peak Output (Source, Sink)	3.2A, 3.2A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	30V
Rise / Fall Time	5.3ns, 4.8ns
Temperature Range - Operating	-40°C ~ 125°C
Mounting Style	SMD
Manufacturer Package	10-VFDFN Exposed Pad
Supplier Device Package	10-DFN (3x3)
Family Part Number	ZL1505
Manufacturer Pack Quantity	100
MSL Level	2 (1 Year)
Win Source Part Number	1282883-ZL1505ALNNT
Manufacturer Homepage	www.intersil.com/cda/home
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian ZL1505ALNNT CAD Model

Alternative Products

Description

The Renesas Electronics America Inc. ZL1505ALNNT is a half-bridge driven configuration channel type device with independent channels.

Configuration: Half-bridge driven
Channels: Independent
Input Type: Non-inverting
Gate Type: N-Channel MOSFET
Logic Voltage - VIL, VIH: 1.7V, 3.4V
Current - Peak Output (Source, Sink): 3.2A, 3.2A
High Side Voltage - Max (Bootstrap): 30V
Operating Temperature: -40°C ~ 125°C
Supply Voltage: 4.5V ~ 7.5V
Switching Frequency: 5.3ns, 4.8ns
Package: 10-DFN (3x3)
Status: Obsolete
Supply and Demand: Limited
