Same model may have multiple batches, images only for reference.

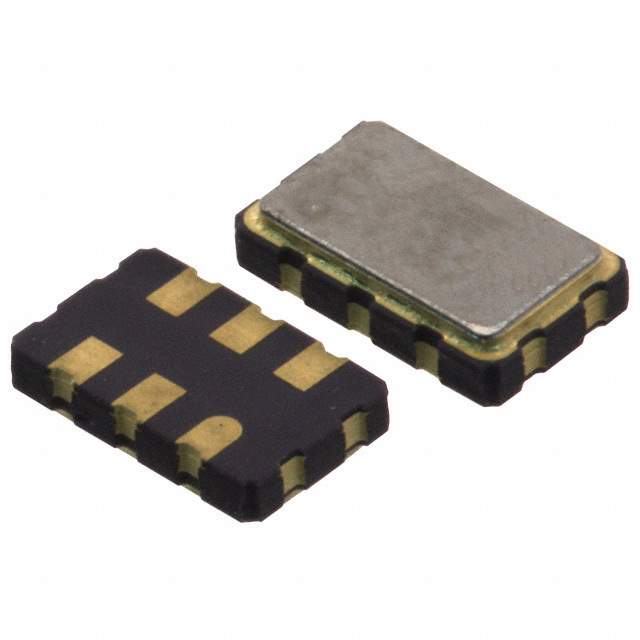

XLL536125.000000I Real Image
Same model may have multiple batches, images only for reference.

XLL536125.000000I

Part No XLL536125.000000I
Manufacturer Renesas Electronics America
Catalog Oscillators
Description XTAL OSC XO 125.0000MHZ LVDS SMD / 125 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Datasheet
XLL536125.000000I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Renesas Electronics America Inc
Series XPRESSO™ FXO-LC53
Package Strip
Base Resonator Crystal
Type XO (Standard)
Frequency 125 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 100mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.203" L x 0.132" W (5.15mm x 3.35mm)
Height - Seated (Max) 0.055" (1.40mm)
Base Product Number XLL536
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1338457-XLL536125.000000I
Ultra Librarian 3D Model Ultra Librarian XLL536125.000000I CAD Model

Description

The Renesas Electronics America Inc XO oscillator is an electronic component that is part of the XPRESSO™ FXO-LC53 series.

  • Series: XPRESSO™ FXO-LC53
  • Frequency: 125 MHz
  • Frequency Stability: ±25ppm
  • Output: LVDS
  • Function: Enable/Disable
  • Current - Supply (Max): 100mA
  • Voltage - Supply: 3.3V
  • Mounting Type: Surface Mount
  • Package / Case: 6-SMD, No Lead
