Same model may have multiple batches, images only for reference.

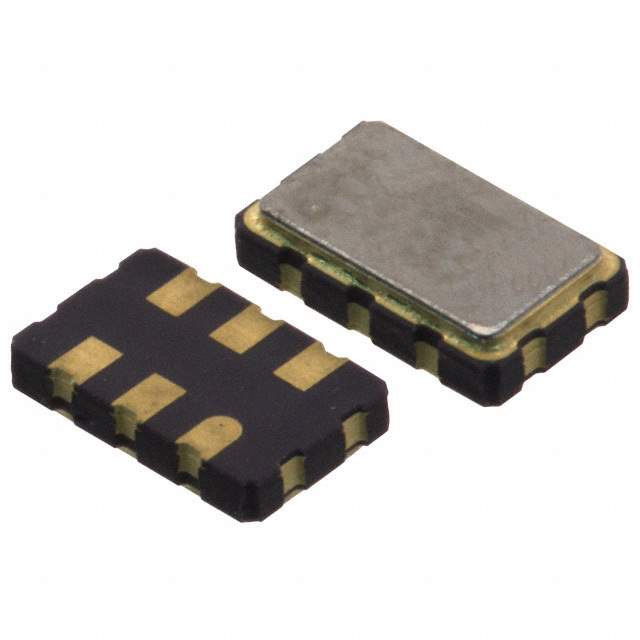

XLH536100.000000I Real Image
Same model may have multiple batches, images only for reference.

XLH536100.000000I

Part No XLH536100.000000I
Manufacturer Renesas Electronics America
Catalog Oscillators
Description XTAL OSC XO 100.0000MHZ HCMOS / 100 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Datasheet
XLH536100.000000I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Manufacturer Renesas Electronics America Inc
Packaging Reel - TR
Base Resonator Crystal
Type XO (Standard)
Frequency 100 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 47mA
Mounting Surface Mount
Case / Package 6-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.055" (1.40mm)
Base Product Number XLH536
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 767-100-18,800-2853-2-ND,631-1146-1,FXO-HC536R-100-ND,FXOHC536R100,800-2853-2,FXO-HC536R-100,XLH536100.000JS4I8,631-1146-2,FXO-HC536R-100.000,631-1146-6
Standard Package 1,000
Win Source Part Number 1328171-XLH536100.000000I
Ultra Librarian 3D Model Ultra Librarian XLH536100.000000I CAD Model

Description

The Renesas Electronics America XLH536100.000000I is an electronic component that is part of the crystals, oscillators, resonators category.

  • Type: XO (Standard)
  • Size/Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Height-Seated (max): 0.055" (1.40mm)
  • Packaging: 6-SMD, no lead
  • Standard Package: 1,000 units
  • Mounting Type: Surface-mount
  • Frequency: 100 MHz
  • Output: HCMOS
  • Frequency Stability: ±25ppm
  • Maximum Supply Current: 47mA
  • Voltage Supply: 3.3V
  • Temperature Range: -40°C ~ 85°C
