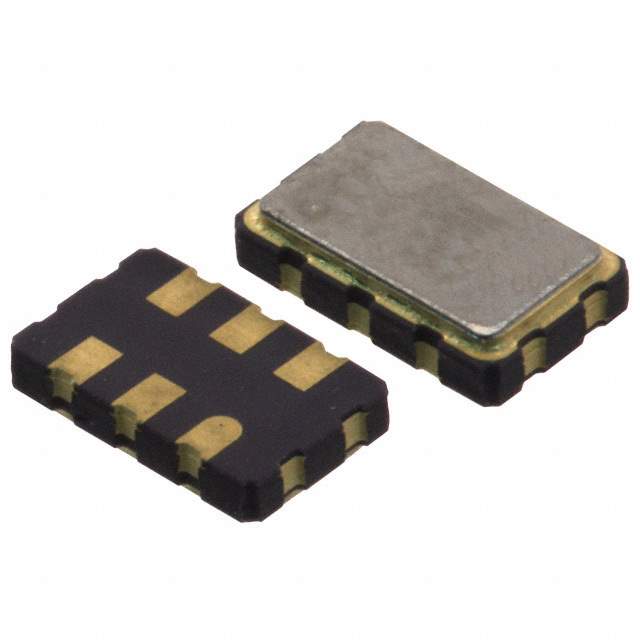

XLH536024.000000I Real Image
Same model may have multiple batches, images only for reference.

XLH536024.000000I

Part No XLH536024.000000I
Manufacturer Renesas Electronics America
Catalog Oscillators
Description XTAL OSC XO 24.0000MHZ HCMOS SMD / 24 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Datasheet
XLH536024.000000I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Renesas Electronics America Inc
Series XPRESSO™ FXO-HC53
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 24 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 35mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.203" L x 0.132" W (5.15mm x 3.35mm)
Height - Seated (Max) 0.055" (1.40mm)
Base Product Number XLH536
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names FXOHC536R24,767-24-14,FXO-HC536R-24,FXO-HC536R-24.000,631-1154-1,631-1154-2,FXO-HC536R-24-ND,631-1154-6
Standard Package 1,000
Win Source Part Number 1105844-XLH536024.000000I
Ultra Librarian 3D Model Ultra Librarian XLH536024.000000I CAD Model

Description

The Renesas Electronics America XLH536024.000000I is a crystal oscillator designed for various applications.

  • Frequency: 24 MHz
  • Output: HCMOS
  • Frequency Stability: ±25ppm
  • Voltage Supply: 3.3V
  • Package: 6-SMD, No Lead
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
