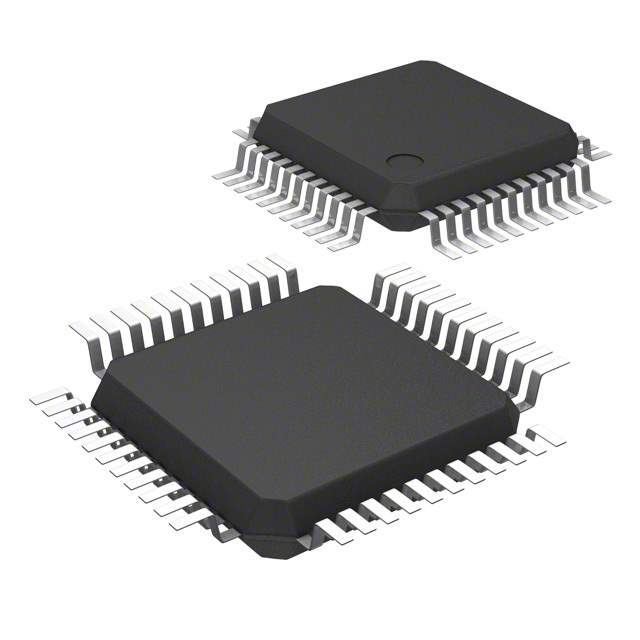

UPD78F1003GB-GAF-AX Real Image
Same model may have multiple batches, images only for reference.

UPD78F1003GB-GAF-AX

Part No UPD78F1003GB-GAF-AX
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 64KB FLASH 44LQFP / MCU 16-bit 78K/0R CISC 64KB Flash 3.3V/5V 44-Pin LQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Renesas Electronics America
Series 78K0R/Kx3-L
Packaging Tray
Core Processor 78K/0R
Core Size 16-Bit
Speed 20MHz
Connectivity 3-Wire SIO, I2C, LIN, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 33
Program Memory Size 64KB (64K x 8)
Program Memory Type FLASH
RAM Size 3K x 8
Supply Voltage 1.8 V ~ 5.5 V
Data Converters A/D 10x10b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)
Package 44-LQFP
Win Source Part Number 798879-UPD78F1003GB-GAF-AX
Popularity Medium
Supply and Demand Status Balance
Quantity per package 160
Family Name UPD78F1003GB
Introduction Date November 09, 2010
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian UPD78F1003GB-GAF-AX CAD Model

Description

The Renesas Electronics America UPD78F1003GB-GAF-AX is a 16-bit microcontroller with a 78K0R/Kx3-L core processor.

  • Speed: 20MHz
  • Program Memory Size: 64KB
  • Connectivity: 3-wire SIO, I2C, LIN, UART/USART
  • I/O Pins: 33
  • Package: 44-LQFP
  • Oscillator Type: Internal
  • Supply Voltage: 1.8 V to 5.5 V
  • Peripherals: DMA, LVD, POR, PWM, WDT
