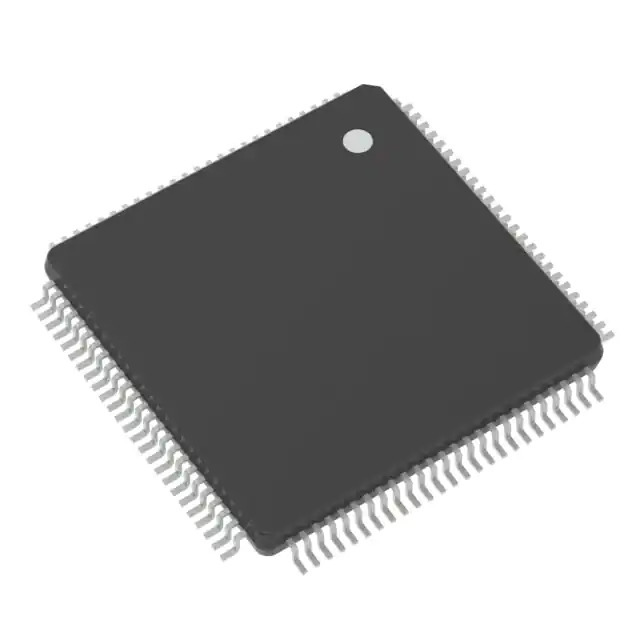

Same model may have multiple batches, images only for reference.
R5F566TKCDFB#10 Renesas Electronics America
Same model may have multiple batches, images only for reference.

R5F566TKCDFB#10

Part No R5F566TKCDFB#10
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 1MB FLASH 144LFQFP / RXv3 RX66T Microcontroller IC 32-Bit Single-Core 160MHz 1MB (1M x 8) FLASH 144-LFQFP (20x20)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series RX66T
Package Tray
Product Status Active
Core Processor RXv3
Core Size 32-Bit Single-Core
Speed 160MHz
Connectivity CANbus, EBI/EMI, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, USB
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 110
Program Memory Size 1MB (1M x 8)
Program Memory Type FLASH
EEPROM Size 32K x 8
RAM Size 128K x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V
Data Converters A/D 30x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 144-LQFP
Supplier Device Package 144-LFQFP (20x20)
Base Product Number R5F566
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1353789-R5F566TKCDFB#10
Ultra Librarian 3D Model Ultra Librarian R5F566TKCDFB#10 CAD Model

Description

The R5F566TKCDFB#10 is an active microcontroller from Renesas Electronics America Inc.

  • Series: RX66T
  • Package: 144-LQFP
  • Operating Temperature: -40°C to 85°C
  • Speed: 160MHz
  • Core Processor: 32-bit Single-Core RXv3
  • I/O Pins: 110
  • Communication Interfaces: CANbus, EBI/EMI, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART
  • Peripherals: DMA, LVD, POR, PWM, WDT
  • Program Memory Size: 1MB (1M x 8)
  • Voltage Supply: 2.7V to 5.5V
