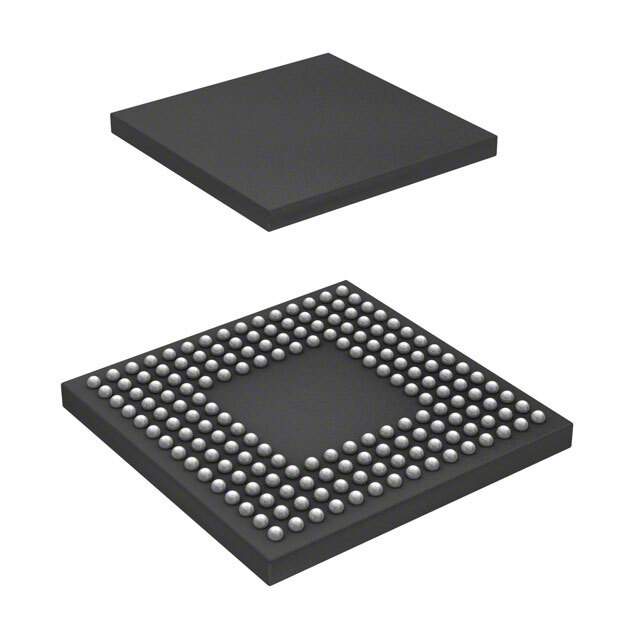

R5F56106WNBG#U0

Part No R5F56106WNBG#U0
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 1MB FLASH 176LFBGA / RX series Microcontroller IC 32-Bit Single-Core 100MHz 1MB (1M x 8) FLASH 176-LFBGA (13x13)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series RX600
Package Tray
Product Status Not For New Designs
Core Processor RX
Core Size 32-Bit Single-Core
Speed 100MHz
Connectivity EBI/EMI, I2C, SCI
Peripherals DMA, POR, PWM, WDT
Number of I/O 140
Program Memory Size 1MB (1M x 8)
Program Memory Type FLASH
RAM Size 128K x 8
Supply Voltage - Operating 3V ~ 3.6V
Data Converters A/D 16x10b; D/A 2x10b
Oscillator Type External
Temperature Range - Operating -20°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 176-LFBGA
Supplier Device Package 176-LFBGA (13x13)
Base Product Number R5F56106
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Standard Package 152
Win Source Part Number 1024895-R5F56106WNBG#U0
Ultra Librarian 3D Model Ultra Librarian R5F56106WNBG#U0 CAD Model

Description

The Renesas RX600 microcontroller is a 32-bit single-core processor that operates at a speed of 100MHz.

  • I/O Ports: 140
  • Program Memory Size: 1MB (1M x 8)
  • Program Memory Type: FLASH
  • RAM Size: 128K x 8
  • Data Converters: A/D 16x10b and D/A 2x10b
  • Connectivity: EBI/EMI, I2C, SCI
  • Peripherals: DMA, POR, PWM, WDT
  • Oscillator Type: External
  • Voltage Range: 3V to 3.6V
  • Package: 176-LFBGA
