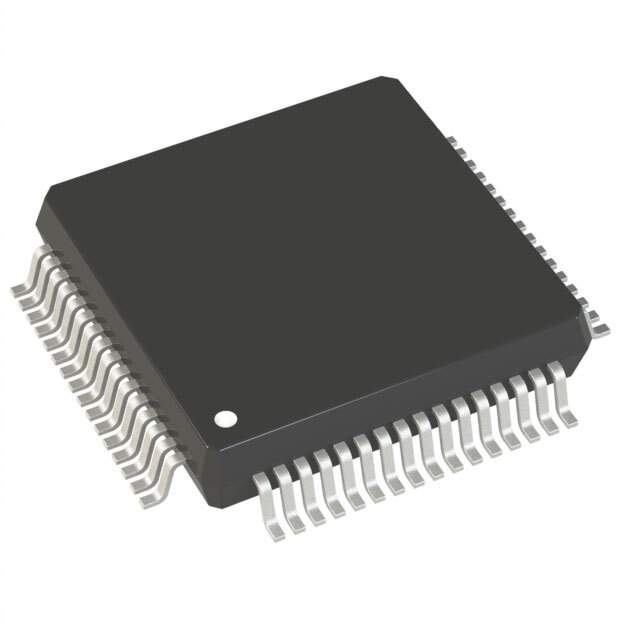

R5F21366CNFA#W4 Real Image1 R5F21366CNFA#W4 Real Image2
Same model may have multiple batches, images only for reference.
R5F21366CNFA#W4 Real Image1 R5F21366CNFA#W4 Real Image2
R5F21366CNFA#W4 Real Image1 R5F21366CNFA#W4 Real Image2
Same model may have multiple batches, images only for reference.

R5F21366CNFA#W4

Part No R5F21366CNFA#W4
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 32KB FLASH 64LQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features R8C series Microcontroller IC 16-Bit 20MHz 32KB (32K x 8) FLASH 64-LQFP (14x14)
Manufacturer Renesas Electronics America
Series R8C/3x/36C
Package Reel - TR
Part Status Obsolete
Core Processor R8C
Core Size 16-Bit
Speed 20MHz
Connectivity I2C, LINbus, SIO, SSU, UART/USART
Peripherals POR, PWM, Voltage Detect, WDT
Number of I/O 59
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
Supply Voltage 1.8V ~ 5.5V
Data Converters A/D 12x10b; D/A 2x8b
Oscillator Type Internal
Operating Temperature Range -20°C ~ 85°C (TA)
Mounting Surface Mount
Package 64-LQFP
Case / Package 64-LQFP (14x14)
Family Name R5F21366
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 931427-R5F21366CNFA#W4
Ultra Librarian 3D Model Ultra Librarian R5F21366CNFA#W4 CAD Model

Description

The R8C/3x/36C series microcontroller is a 16-bit 20MHz device with 32KB (32K x 8) flash program memory.

  • I/O Pins: 59
  • Connectivity: I2C, LINbus, SIO, SSU, UART/USART
  • Peripherals: POR, PWM, voltage detect, and WDT
  • Oscillator Type: Internal
  • Supply Voltage: 1.8V to 5.5V
  • Package: 64-LQFP
  • Operating Temperature: -20°C to 85°C
  • Data Converter: A/D 12x10b and D/A 2x8b
  • Program Memory Type: FLASH
  • EEPROM Size: 4K x 8
  • Status: Obsolete
