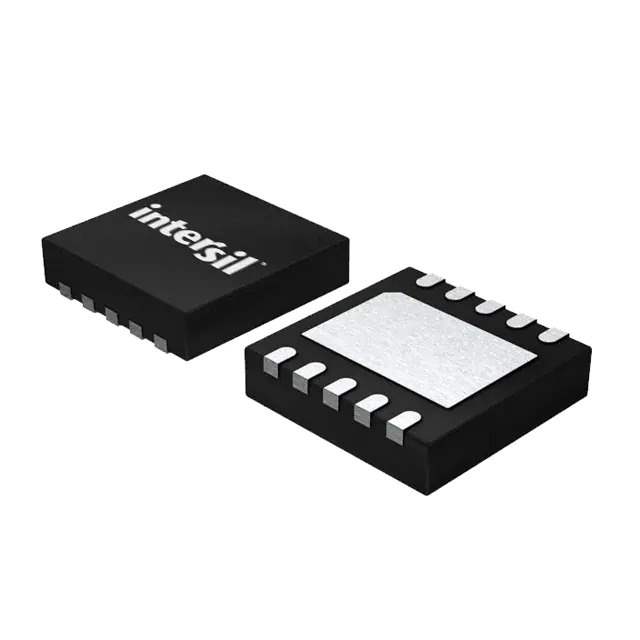

PX3511BDDG

Get a Quote

Part No	PX3511BDDG
Manufacturer	Renesas Electronics America
Catalog	PMIC - Gate Drivers
Description	IC GATE DRVR HALF-BRIDGE 10DFN
Datasheet	PX3511BDDG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr	Renesas Electronics America
Package	Tube
Product Status	Obsolete
Programmable	Not Verified
Driven Configuration	Half-Bridge
Channel Type	Synchronous
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	10.8V ~ 13.2V
Current - Peak Output (Source, Sink)	1.25A, 2A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	36 V
Rise / Fall Time (Typ)	26ns, 18ns
Temperature Range - Operating	0°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	10-DFN (3x3)
Base Product Number	PX3511
Standard Package	100 pcs
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	658281-PX3511BDDG
Ultra Librarian 3D Model	Ultra Librarian PX3511BDDG CAD Model

Alternative Products

Description

The PX3511BDDG is a power management integrated circuit (IC) used as a gate driver for power MOSFETs in half-bridge configurations.

Function: Gate driver for power MOSFETs
Configuration: Half-bridge
Control: Synchronous channel control
Input Type: Non-inverting
Maximum High Side Voltage: 36V
Rise Time: 26ns
Fall Time: 18ns
Peak Output Current (Source): 1.25A
Peak Output Current (Sink): 2A
Mounting Type: Surface mountable
Package: 10-VFDFN exposed pad
Operating Temperature Range: 0°C to 125°C
ECCN: EAR99
Manufacturer: Renesas Electronics America
Status: Obsolete
