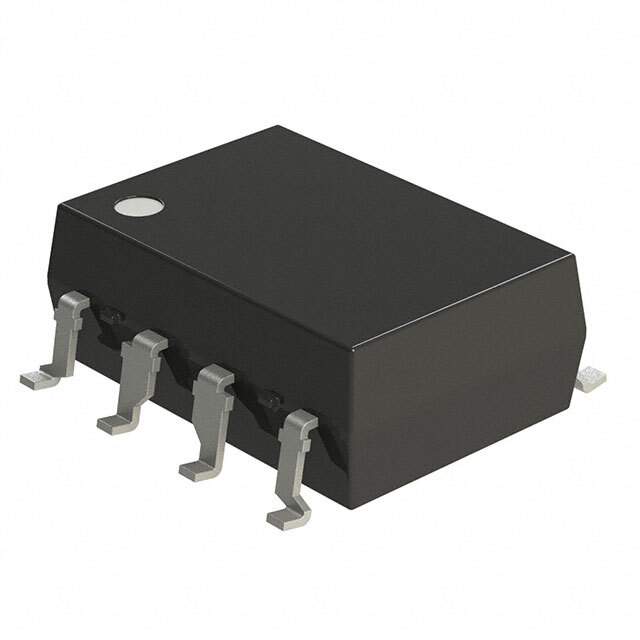

PS9513L3-AX Real Image
Same model may have multiple batches, images only for reference.

PS9513L3-AX

Part No PS9513L3-AX
Manufacturer Renesas Electronics America
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV OPEN COLL 8DIP GW / Logic Output Optoisolator 1Mbps Open Collector 5000Vrms 1 Channel 15kV/µs CMTI 8-DIP Gull Wing
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Logic Output
Mfr Renesas Electronics America Inc
Package Tube
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 15kV/µs
Input Type DC
Output Type Open Collector
Current - Output / Channel 15 mA
Data Rate 1Mbps
Propagation Delay tpLH / tpHL (Max) 750ns, 500ns
Voltage - Forward (Vf) (Typ) 1.65V
Current - DC Forward (If) (Max) 25mA
Voltage - Supply 4.5V ~ 20V
Temperature Range - Operating -40°C ~ 100°C
Mounting SMD (SMT)
Package / Case 8-SMD, Gull Wing
Supplier Device Package 8-DIP Gull Wing
Base Product Number PS9513
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Other Names 559-1663,-1161-PS9513L3-AX
Standard Package 50
Win Source Part Number 1001863-PS9513L3-AX
Ultra Librarian 3D Model Ultra Librarian PS9513L3-AX CAD Model

Description

The PS9513L3-AX is an optoisolator that belongs to the Logic Output category.

  • Manufacturer: Renesas Electronics America Inc
  • Win Source Part Number: 1001863
  • Packaging: Tube
  • Standard Package: 50
  • Data Rate: 1Mbps
  • Input Type: DC
  • Voltage - Isolation: 5000Vrms
  • Suitable Use: Different electronic devices and systems
  • Temperature Range: -40°C ~ 100°C
  • Mounting: SMD (SMT) technology
