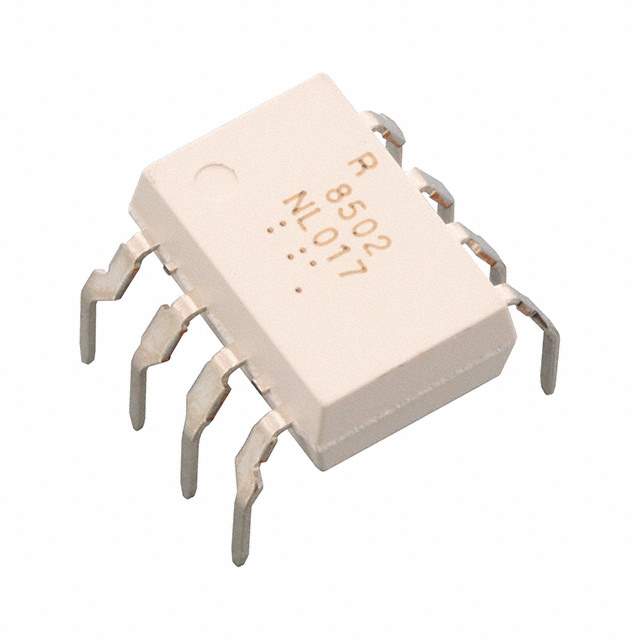

PS8502L1-AX Real Image
Same model may have multiple batches, images only for reference.

PS8502L1-AX

Part No PS8502L1-AX
Manufacturer Renesas Electronics America
Catalog Optoisolators - Transistor, Photovoltaic Output
Description HI-SPD OPTOCPLR 8-PIN DIP  /  Optoisolator Transistor with Base Output 5000Vrms 1 Channel 8-DIP
Datasheet
PS8502L1-AX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Renesas Electronics America Inc
Series NEPOC
Package Tube
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 15% @ 16mA
Input Type DC
Output Type Transistor with Base
Voltage - Output (Max) 35V
Current - Output / Channel 8mA
Voltage - Forward (Vf) (Typ) 1.7V
Current - DC Forward (If) (Max) 25 mA
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Through Hole
Package / Case 8-DIP (0.400", 10.16mm)
Supplier Device Package 8-DIP
Base Product Number PS8502
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Other Names 559-PS8502L1-AX,-1161-PS8502L1-AX
Standard Package 50
Win Source Part Number 1128081-PS8502L1-AX
Ultra Librarian 3D Model Ultra Librarian PS8502L1-AX CAD Model

Description

The PS8502L1-AX is an optoisolator transistor with photovoltaic output from Renesas Electronics America Inc.

  • Series: NEPOC
  • Package type: 8-DIP (0.400", 10.16mm)
  • Standard package: tube standard package of 50
  • Output type: transistor with base
  • Input type: DC
  • Current transfer ratio: 15% @ 16mA
  • Voltage isolation: 5000Vrms
  • Temperature range: -55°C ~ 100°C
