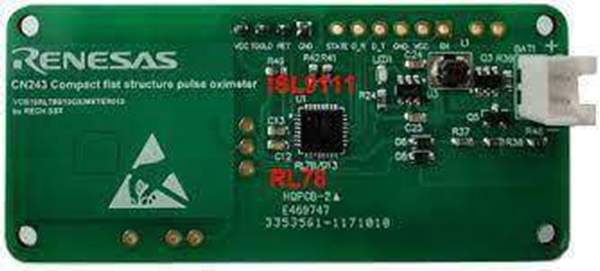

OB1203SD-RL-EVK Renesas
Same model may have multiple batches, images only for reference.

OB1203SD-RL-EVK

Part No OB1203SD-RL-EVK
Manufacturer Renesas Electronics America
Catalog Evaluation Boards - Sensors
Description HEART RATE, SPO2 AND RESPIRATION
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201912-OB1203SD-RL-EVK
Manufacturer Renesas
Category Development Boards, Kits, Programmers- Evaluation Boards -Sensor Evaluation Boards
Package Box
Product Status Last Time Buy
Sensor Type Medical, Pulse Oximeter (PO or SpO2)
Interface I2C
Voltage - Supply 1.7V ~ 3.6V
Supplied Contents Board(s)
Utilized IC / Part OB1203
Ultra Librarian 3D Model Ultra Librarian OB1203SD-RL-EVK CAD Model

Description

The Renesas OB1203 is a sensor evaluation board used for medical applications, specifically for pulse oximetry.

  • Function: Evaluation Board
  • Type: Embedded - MCU, DSP
  • Core Processor: ARM Cortex-M
  • Voltage - Supply: 1.7V ~ 3.6V
  • IC / Part Utilized: OB1203
  • For Use With / Related Products: OB1203
  • Status: Active
