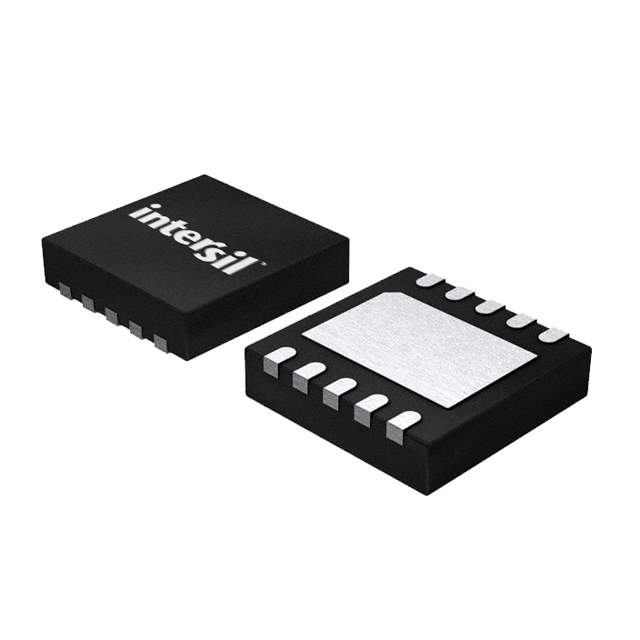

ISL6620IRZ

Name: ISL6620IRZ
Brand: Renesas Electronics America
SKU: 1317815
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ISL6620IRZ
Manufacturer	Renesas Electronics America
Catalog	PMIC - Gate Drivers
Description	IC GATE DRVR HALF-BRIDGE 10DFN / Half-Bridge Gate Driver IC Non-Inverting 10-DFN (3x3)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>Power Management (PMIC)>Gate Drivers
Manufacturer	Renesas Electronics America Inc
Packaging	Tube
Product Status	Obsolete
Driven Configuration	Half-Bridge
Channel Type	Synchronous
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	4.5V ~ 5.5V
Current - Peak Output (Source, Sink)	2A, 2A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	36 V
Rise / Fall Time (Typ)	8ns, 8ns
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting	Surface Mount
Case / Package	10-VFDFN Exposed Pad
Supplier Device Package	10-DFN (3x3)
Base Product Number	ISL6620
RoHS Status	ROHS3 Compliant
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Standard Package	100
Win Source Part Number	1317815-ISL6620IRZ
Ultra Librarian 3D Model	Ultra Librarian ISL6620IRZ CAD Model

Alternative Products

Description

The ISL6620IRZ is a gate driver manufactured by Renesas Electronics America Inc.

Category: Gate Driver
Packaging: Tube
Standard Package: 100
Mounting: Surface Mounting
Channel Type: Synchronous
Input Type: Non-Inverting
Driven Configuration: Half-Bridge
Number of Drivers: Two
Gate Type: N-channel MOSFET
Logic Voltage - VIL, VIH: Not Specified
High Side Voltage - Max (Bootstrap): 36 V
Rise/Fall Time (typ): 8ns, 8ns
Voltage Supply: 4.5V ~ 5.5V
Supplier Device Package: 10-DFN (3x3)
Temperature Range for Operation: -40°C ~ 125°C (TJ)
ECCN: EAR99 compliant
REACH: Unaffected
ROHS3 Compliant: Yes
Base Product Number: ISL6620
Status: Obsolete
