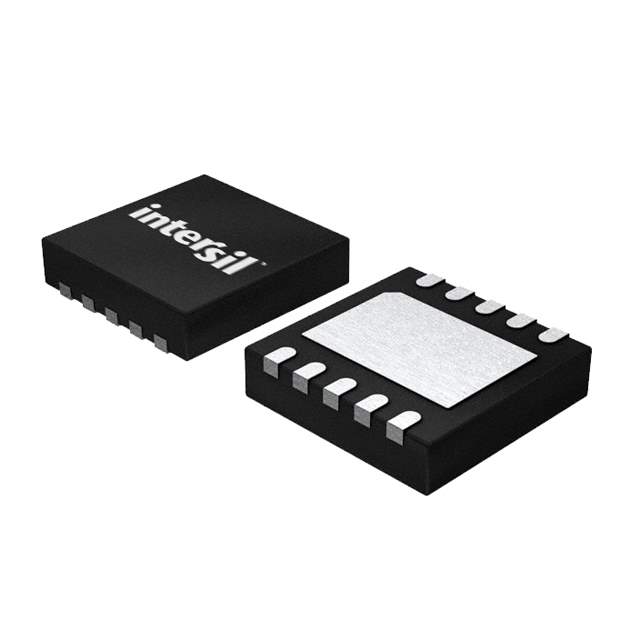

ISL6613CR

Get a Quote

Part No	ISL6613CR
Manufacturer	Renesas Electronics America
Catalog	PMIC - Gate Drivers
Description	IC GATE DRVR HALF-BRIDGE 10DFN / Half-Bridge Gate Driver IC Non-Inverting 10-DFN (3x3)
Datasheet	ISL6613CR Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>Power Management (PMIC)>Gate Drivers
Manufacturer	Renesas Electronics America Inc
Packaging	Tube
Product Status	Obsolete
Driven Configuration	Half-Bridge
Channel Type	Synchronous
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	10.8V ~ 13.2V
Current - Peak Output (Source, Sink)	1.25A, 2A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	36 V
Rise / Fall Time (Typ)	26ns, 18ns
Temperature Range - Operating	0°C ~ 125°C (TJ)
Mounting	Surface Mount
Case / Package	10-VFDFN Exposed Pad
Supplier Device Package	10-DFN (3x3)
Base Product Number	ISL6613
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Standard Package	100
Win Source Part Number	1316488-ISL6613CR
Ultra Librarian 3D Model	Ultra Librarian ISL6613CR CAD Model

Alternative Products

Description

The Renesas Electronics America Inc gate driver is a half-bridge driven configuration with two drivers.

Configuration: Half-Bridge Driven
Number of Drivers: Two
Channel Type: Synchronous
Input Type: Non-Inverting
Gate Type: N-Channel MOSFET
High-Side Voltage: 36V
Voltage Supply Range: 10.8V to 13.2V
Temperature Range: 0°C to 125°C
Application: Power Management (PMIC)
