ISL54206AIRUZ-T Audio USB Switch IC

The ISL54206AIRUZ-T from Renesas Electronics America is a dual-channel audio and USB switch IC that features ultra-low distortion and noise performance, making it ideal for high-performance audio applications. The switch IC supports both single-ended and differential audio signals, and it can route audio signals between two inputs and two outputs. The ISL54206AIRUZ-T also supports USB 2.0 signals, and it can route USB signals between two hosts and two devices.

The ISL54206AIRUZ-T features a number of key features that make it ideal for high-performance audio applications, including:

• Ultra-low distortion and noise performance: The ISL54206AIRUZ-T features a total harmonic distortion (THD+N) of less than 0.0005% at 1 kHz, and a noise floor of less than -100 dBFS.
• Wide bandwidth: The ISL54206AIRUZ-T supports a wide audio bandwidth of up to 192 kHz.
• High output drive capability: The ISL54206AIRUZ-T can drive up to 2 Vrms of audio signal, making it ideal for use with high-impedance headphones and speakers.
• Low power consumption: The ISL54206AIRUZ-T consumes very little power, making it ideal for battery-powered applications.

The ISL54206AIRUZ-T is also easy to use, featuring a simple two-wire control interface. The switch IC can be configured to route audio signals between the two inputs and two outputs based on the state of the control pins. The ISL54206AIRUZ-T also features a number of protection features, including overvoltage protection, undervoltage protection, and short-circuit protection.

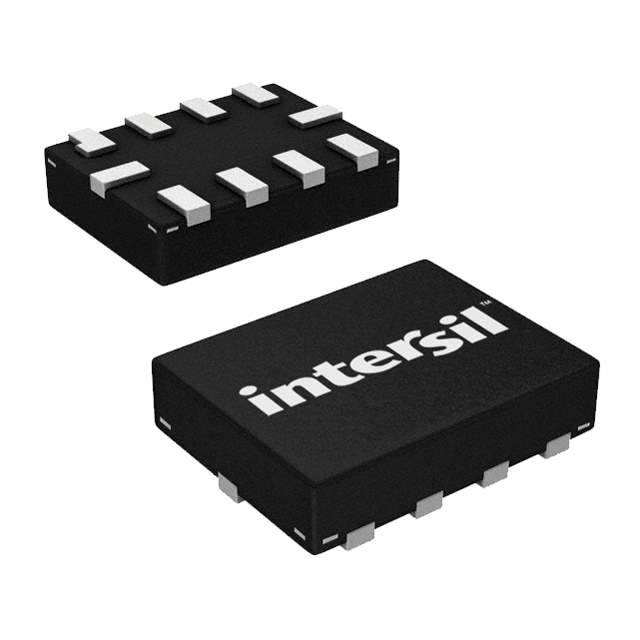

The ISL54206AIRUZ-T is available in a 10-UTQFN package, and it is ideal for a wide range of high-performance audio applications, such as:

• High-end audiophile headphones
• Active speakers
• Digital audio players
• Home theater systems
• Professional audio equipment

Here are some specific examples of how the ISL54206AIRUZ-T can be used in high-performance audio applications:

• In a high-end audiophile headphone, the ISL54206AIRUZ-T can be used to switch between the headphone output and the speaker output. This allows the user to easily switch between listening to headphones and listening to speakers without having to disconnect and reconnect any cables.
• In an active speaker, the ISL54206AIRUZ-T can be used to switch between the line-in input and the digital audio input. This allows the speaker to be used with a variety of different audio sources, such as a computer, a CD player, or a streaming device.
• In a digital audio player, the ISL54206AIRUZ-T can be used to switch between the headphone output and the speaker output, or between the line-out output and the digital audio input. This allows the digital audio player to be used with a variety of different audio devices, such as headphones, speakers, and amplifiers.
• In a home theater system, the ISL54206AIRUZ-T can be used to switch between the audio output from the TV and the audio output from a streaming device, such as a Roku or an Apple TV. This allows the user to easily switch between watching TV and watching streaming content without having to change any settings.
• In professional audio equipment, such as a recording mixer or a live sound mixer, the ISL54206AIRUZ-T can be used to switch between different audio inputs and outputs. This allows the audio engineer to easily route audio signals between different devices, such as microphones, instruments, and speakers.

Overall, the ISL54206AIRUZ-T is a versatile and high-performance audio and USB switch IC that is ideal for a wide range of applications. It features ultra-low distortion and noise performance, wide bandwidth, high output drive capability, low power consumption, and a simple two-wire control interface.
