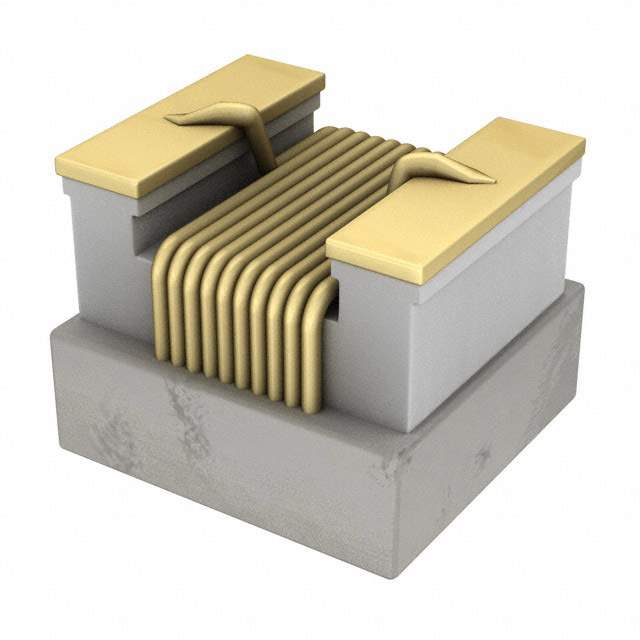

AISC-1008HQ-10NJ-T Real Image
Same model may have multiple batches, images only for reference.

AISC-1008HQ-10NJ-T

Part No AISC-1008HQ-10NJ-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 10NH 1.3A 80 MOHM SMD / 10 nH Unshielded Drum Core, Wirewound Inductor 1.3 A 80mOhm Max 1008 (2520 Metric)
Datasheet
AISC-1008HQ-10NJ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series AISC-1008HQ
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 10 nH
Tolerance ±5%
Current Rating (Amps) 1.3 A
Shielding Unshielded
DC Resistance (DCR) 80mOhm Max
Q @ Freq 60 @ 500MHz
Frequency - Self Resonant 3.6GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 50 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Dimension 0.102" L x 0.083" W (2.60mm x 2.10mm)
Height - Seated (Max) 0.075" (1.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 535-12241-6,535-12241-2,535-12241-1
Standard Package 2,000
Win Source Part Number 1034123-AISC-1008HQ-10NJ-T
Ultra Librarian 3D Model Ultra Librarian AISC-1008HQ-10NJ-T CAD Model

Description

This electronic component is a Fixed Inductors product with the Win Source Part Number: 1034123-AISC-1008HQ-10NJ-T.

  • Series: AISC-1008HQ
  • Type: Drum Core, Wirewound
  • Package: Tape & Reel
  • Shielding: Unshielded
  • Inductance: 10 nH
  • Height - Seated (Max): 0.075" (1.90mm)
  • Standard Package: 2,000
  • Mounting: SMD (SMT)
  • Tolerance: ±5%
  • Material - Core: Ceramic
  • Q @ Freq: 60 @ 500MHz
  • Frequency - Self Resonant: 3.6GHz
  • Package / Case: 1008 (2520 Metric)
  • DC Resistance (DCR): 80mOhm Max
  • Supplier Device Package: 1008 (2520 Metric)
  • Temperature Range - Operating: -40°C ~ 125°C
  • Dimension: 0.102" L x 0.083" W (2.60mm x 2.10mm)
  • Alternative Parts (Cross-Reference): 36502C10NJTDG, LQW15AN10NJ80D, AISC-0603HP-10NJ-T, LQW15AN9N1J80D, AISC-0805HQ-10NJ-T, LQW18AN10NJ80D, and AISC-0402HP-10NJ-T
  • ECCN: EAR99
