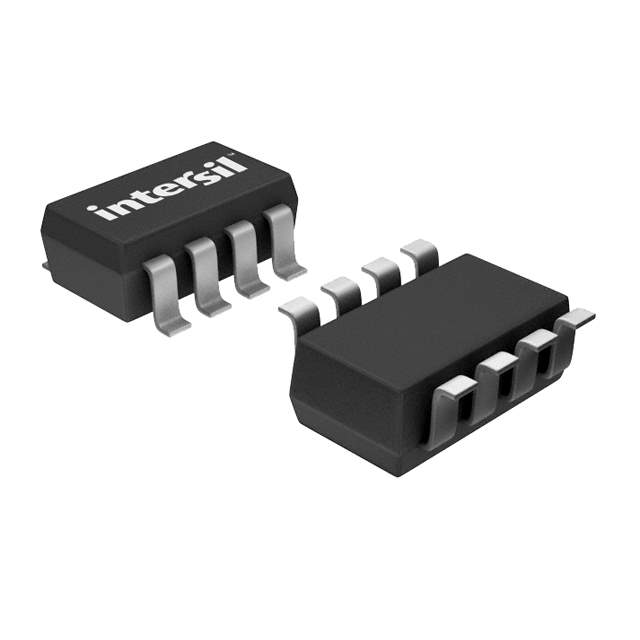

The ISL28213FHZ-T7A is a precision, low noise, low input bias current operational amplifier from Renesas Electronics America. It is designed for applications requiring high accuracy and stability. This amplifier offers excellent DC performance and very low noise, making it suitable for instrumentation, sensor amplification, and precision signal processing.

Applications:

• Instrumentation Amplifiers: Used in precision measurement equipment for signal conditioning.
• Sensor Amplification: Amplifies signals from various sensors such as pressure sensors, temperature sensors, and load cells.
• Medical Instrumentation: Employed in medical devices requiring low noise and high accuracy.
• Data Acquisition Systems: Used in data acquisition boards for precise signal capture.
• Precision Voltage References: Buffers voltage references to maintain accuracy.

Features:

• Low Noise: Offers very low input voltage noise, ensuring accurate signal amplification.
• Low Input Bias Current: Minimizes errors due to input current, enhancing precision.
• Low Offset Voltage: Provides high DC accuracy with minimal offset.
• Wide Supply Voltage Range: Operates over a wide range of supply voltages, offering flexibility in power supply design.
• Rail-to-Rail Input and Output: Allows for maximum signal swing, improving dynamic range.
• High Open-Loop Gain: Provides high gain for accurate signal amplification.

Benefits:

• High Accuracy: Enables precise signal amplification, reducing measurement errors.
• Low Noise Performance: Minimizes noise interference, improving signal integrity.
• Stable Operation: Ensures consistent performance over temperature and time.
• Versatile Applications: Suitable for a wide range of precision applications.
• Improved Signal Resolution: Enhances the resolution of small signals, improving measurement sensitivity.

Additional Details:

The ISL28213FHZ-T7A operational amplifier features internal compensation for stable operation. It is available in a small form-factor package, such as MSOP or SOIC, for easy integration into circuit boards. The amplifier is designed to operate over a wide temperature range, making it suitable for industrial and automotive applications. It also includes protection features such as over-voltage protection and short-circuit protection to enhance reliability.
