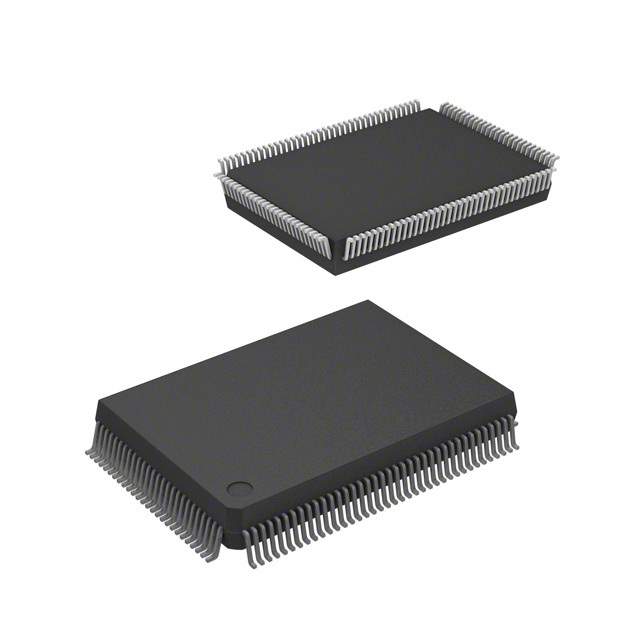

The HD64F2329BVF25 is a microcontroller from Renesas Electronics America, part of their H8/300H family. This microcontroller is designed for embedded control systems where a balance of processing power, memory, and peripheral functions are needed. It is suitable for a range of applications requiring real-time control and data processing capabilities.

Applications

• Motor Control Systems: Used in controlling electric motors in various applications, including industrial machinery and automotive systems.
• Industrial Automation: Employed in automated systems for precise control and monitoring of industrial processes and machinery.
• Consumer Electronics: Found in advanced consumer products like home appliances, audio-visual equipment, and interactive devices requiring embedded control.
• Automotive Electronics: Suitable for automotive applications such as engine management, dashboard control, and body control systems.
• Robotics: Can be used as the central processing unit in robotic systems, providing control and coordination of movements and actions.

Features

• H8/300H CPU Core: Features a high-performance H8/300H CPU core, providing efficient instruction processing and real-time capabilities.
• On-Chip Flash Memory: Includes on-chip Flash memory for program storage and data retention.
• RAM: Equipped with Random Access Memory (RAM) for temporary data storage during operation.
• Timers: Offers multiple timers for timing control, event counting, and PWM signal generation.
• Serial Communication Interfaces: Provides serial communication interfaces like UART, SCI, and SPI for connecting to external devices and peripherals.
• A/D Converter: Integrated Analog-to-Digital converter for converting analog signals from sensors and other sources into digital data.
• I/O Ports: Provides a large number of general-purpose I/O ports for interfacing with external devices.
• Interrupt Controller: Features a flexible interrupt controller for handling various interrupt sources and prioritizing them.
• Operating Voltage: Operates at a standard voltage range suitable for embedded applications.
• Package: Typically available in a QFP (Quad Flat Package) for surface mount assembly.

Benefits

• High Performance: Delivers high processing performance for complex embedded control tasks.
• Integrated Peripherals: Reduces the need for external components, resulting in lower system cost and complexity.
• Real-Time Operation: Offers real-time capabilities for precise timing control and event handling.
• Flexible Communication: Facilitates easy communication with other devices and systems through various serial interfaces.
• Low Power Consumption: Designed for low power consumption, making it suitable for battery-powered and energy-efficient applications.
• Robust Design: Offers a robust design with high reliability and stability for long-term operation.

Additional Details

The HD64F2329BVF25 microcontroller is designed with power efficiency in mind, making it suitable for applications where energy conservation is critical. Its wide range of operating voltages allows it to be used in various power environments. The device also features robust protection mechanisms to ensure reliable operation in harsh conditions. The integrated Flash memory allows for easy program updates and modifications, while the ample RAM provides sufficient space for data storage and manipulation. Overall, the HD64F2329BVF25 is a versatile and reliable microcontroller suitable for a wide range of embedded applications.
