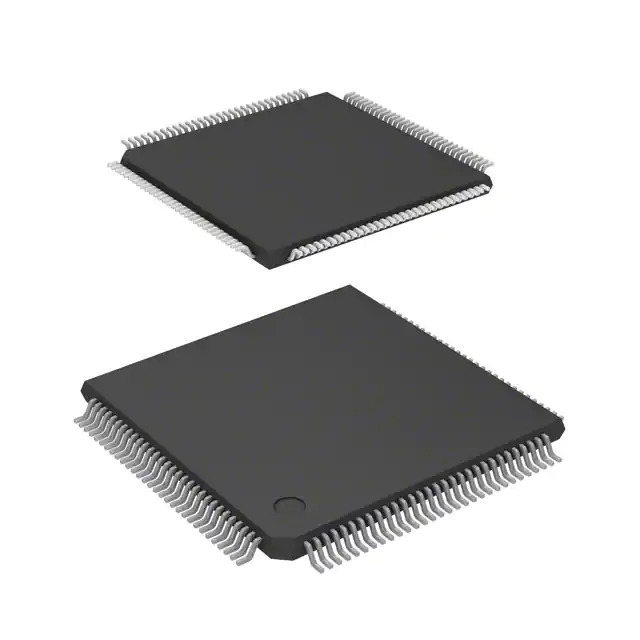

DF2215TE16WV

Name: DF2215TE16WV
Brand: Renesas Electronics America
SKU: 1378248
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	DF2215TE16WV
Manufacturer	Renesas Electronics America
Catalog	Embedded - Microcontrollers
Description	IC MCU 16BIT 256KB FLASH 120TQFP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr	Renesas Electronics America Inc
Series	H8® H8S/2200
Package	Tray
Product Status	Not For New Designs
Core Processor	H8S/2000
Core Size	16-Bit
Speed	16MHz
Connectivity	SCI, SmartCard, USB
Peripherals	DMA, POR, PWM, WDT
Number of I/O	68
Program Memory Size	256KB (256K x 8)
Program Memory Type	FLASH
EEPROM Size	-
RAM Size	16K x 8
Voltage - Supply (Vcc/Vdd)	2.7V ~ 3.6V
Data Converters	A/D 6x10b; D/A 2x8b
Oscillator Type	External
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	120-TQFP
Supplier Device Package	120-TQFP (14x14)
Base Product Number	DF2215
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.31.0001
Win Source Part Number	1378248-DF2215TE16WV
Ultra Librarian 3D Model	Ultra Librarian DF2215TE16WV CAD Model

Alternative Products

Description

The DF2215TE16WV is an integrated circuit microcontroller from Renesas Electronics America Inc.

Series: H8S/2200
Package: 120-TQFP
Temperature Range: -40°C to 85°C
Speed: 16MHz
I/O Pins: 68
Core Size: 16-bit
Connectivity: SCI, SmartCard, USB
Peripherals: DMA, POR, PWM, WDT
Program Memory Size: 256KB
Memory Type: Flash
RAM: 16KB
Voltage Supply Range: 2.7V to 3.6V
A/D Converter: 6 Channels
D/A Converter: 2 Channels
