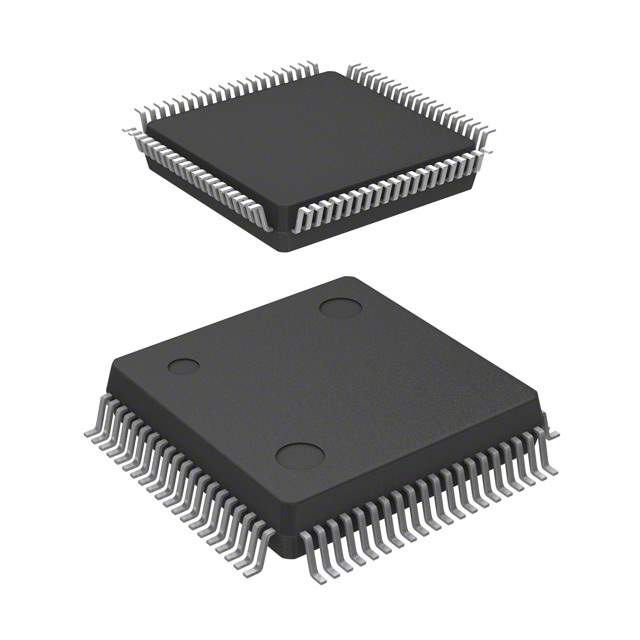

DF2138AFA20V Real Image
Same model may have multiple batches, images only for reference.

DF2138AFA20V

Part No DF2138AFA20V
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 128KB FLASH 80QFP / H8S/2000 H8® H8S/2100 Microcontroller IC 16-Bit 20MHz 128KB (128K x 8) FLASH 80-QFP (14x14)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series H8® H8S/2100
Package Tray
Product Status Not For New Designs
Core Processor H8S/2000
Core Size 16-Bit
Speed 20MHz
Connectivity Host Interface, I2C, IrDA, SCI
Peripherals POR, PWM, WDT
Number of I/O 58
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
RAM Size 4K x 8
Voltage - Supply (Vcc/Vdd) 4V ~ 5.5V
Data Converters A/D 8x10b; D/A 2x8b
Oscillator Type Internal
Temperature Range - Operating -20°C ~ 75°C (TA)
Mounting Type Surface Mount
Package / Case 80-BQFP
Supplier Device Package 80-QFP (14x14)
Base Product Number DF2138
Standard Package 84
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1339826-DF2138AFA20V
Ultra Librarian 3D Model Ultra Librarian DF2138AFA20V CAD Model

Description

The Renesas Electronics America Inc's H8® H8S/2100 series 1339826-DF2138AFA20V is an embedded microcontroller that comes in an 80-BQFP package.

  • I/Os: 58
  • Program Memory Size: 128KB (128K x 8)
  • RAM Size: 4K x 8
  • Data Converters: A/D 8x10b; D/A 2x8b
  • Voltage Supply: 4V to 5.5V
  • Operating Temperature: -20°C to 75°C
  • Mounting Type: Surface Mount
  • Package: Tray
