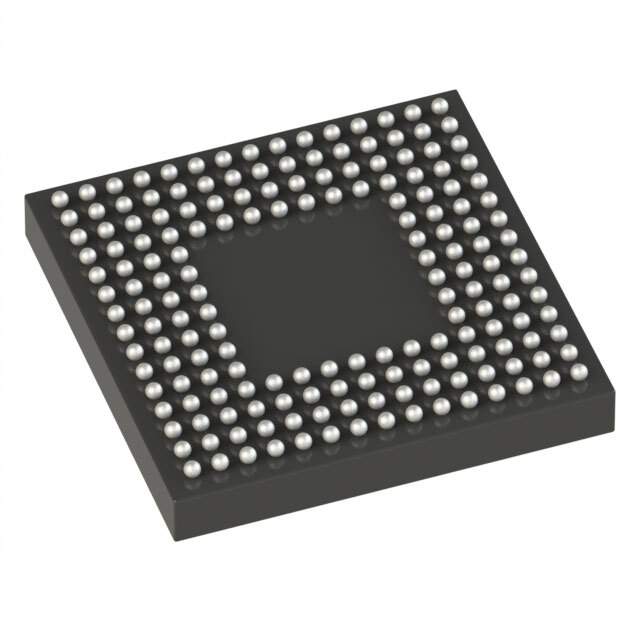

DF2112VBG25HV Real Image1 DF2112VBG25HV Real Image2
Same model may have multiple batches, images only for reference.
DF2112VBG25HV Real Image1 DF2112VBG25HV Real Image2
DF2112VBG25HV Real Image1 DF2112VBG25HV Real Image2
Same model may have multiple batches, images only for reference.

DF2112VBG25HV

Part No DF2112VBG25HV
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 64KB FLASH 176LFBGA / H8S/2000 H8® H8S/2100 Microcontroller IC 16-Bit 20MHz 64KB (64K x 8) FLASH 176-LFBGA (13x13)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>Microcontrollers
Mfr Renesas Electronics America
Series H8® H8S/2100
Package Tray
Product Status Obsolete
Core Processor H8S/2000
Core Size 16-Bit
Speed 20MHz
Connectivity I²C, LPC, PS2, SCI, SCIF, SMBUS
Peripherals DMA, PWM, WDT
Number of I/O 112
Program Memory Size 64KB (64K x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 4K x 8
Voltage - Supply (Vcc/Vdd) 3V ~ 3.6V
Data Converters A/D 12x10b
Oscillator Type Internal
Temperature Range - Operating -20°C ~ 75°C (TA)
Mounting Type Surface Mount
Package / Case 176-LFBGA
Supplier Device Package 176-LFBGA (13x13)
Base Product Number DF2112
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN EAR99
HTSUS 8542.31.0001
Standard Package 1 pcs
Win Source Part Number 1381878-DF2112VBG25HV
Ultra Librarian 3D Model Ultra Librarian DF2112VBG25HV CAD Model

Description

The 1381878-DF2112VBG25HV is an embedded microcontroller in the H8® H8S/2100 series, manufactured by Renesas Electronics America.

  • Core Processor: H8S/2000
  • Speed: 20MHz
  • Package: Tray
  • Core Size: 16-Bit
  • Connectivity: I²C, LPC, PS2, SCI, SCIF, SMBUS
  • Peripherals: DMA, PWM, WDT
  • Number of I/O Pins: 112
  • Program Memory Size: 64KB (64K x 8)
  • Program Memory Type: FLASH
  • RAM Size: 4K x 8
  • A/D Converters: 12
  • A/D Resolution: 10 Bit
  • Oscillator Type: Internal
  • Mounting Type: Surface Mount
  • Package/Case: 176-LFBGA (13x13)
  • Operating Temperature: -20°C to 75°C
  • ECCN: EAR99
  • Voltage Supply: 3V to 3.6V
  • HTSUS: 8542.31.0001
  • Base Product Number: DF2112
  • Series: Obsolete
  • Moisture Sensitivity Level (MSL): 3 (168 Hours)
  • Standard Package: 1 Piece
