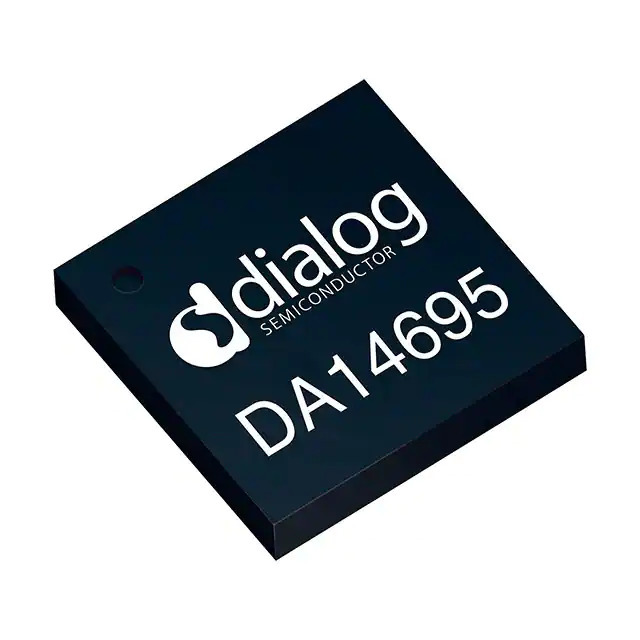

DA14695-00000HQ2 Renesas Electronics America
Same model may have multiple batches, images only for reference.

DA14695-00000HQ2

Part No DA14695-00000HQ2
Manufacturer Renesas Electronics America
Catalog RF Transceiver ICs
Description MULTI-CORE WIRELESS MCU FOR BLUE / IC RF TxRx + MCU Bluetooth Bluetooth v5.2 2.4GHz 86-VFBGA
Datasheet
DA14695-00000HQ2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver ICs
Mfr Renesas Design Germany GmbH
Series SmartBond™
Package Tape & Reel
Product Status Active
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v5.2
Modulation -
Frequency 2.4GHz
Data Rate (Max) -
Power - Output 6dBm
Sensitivity -97dBm
Memory Size -
Serial Interfaces GPIO, I²C, I²S, SPI, UART
GPIO 20
Voltage - Supply 2.4V ~ 4.75V
Current - Receiving -
Current - Transmitting -
Mounting Type Surface Mount
Package / Case 86-VFBGA
Supplier Device Package 86-VFBGA (6x6)
Base Product Number DA14695
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 1354514-DA14695-00000HQ2
Ultra Librarian 3D Model Ultra Librarian DA14695-00000HQ2 CAD Model

Description

The DA14695-00000HQ2 is an RF transceiver IC from Renesas Design Germany GmbH.

  • Series: SmartBond™
  • Frequency: 2.4GHz
  • Protocol: Bluetooth v5.2
  • Voltage Supply: 2.4V to 4.75V
  • Power Output: 6dBm
  • Serial Interfaces: GPIO, I²C, I²S, SPI, UART
  • Package: 86-VFBGA (6x6)
  • Sensitivity: -97dBm
