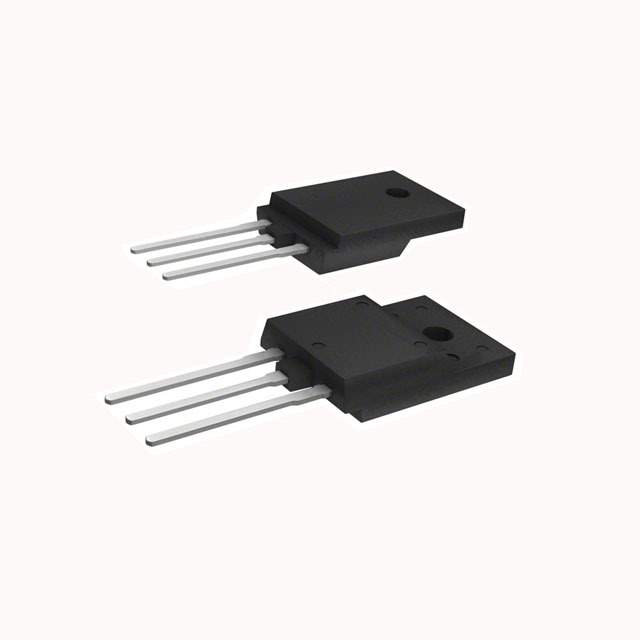

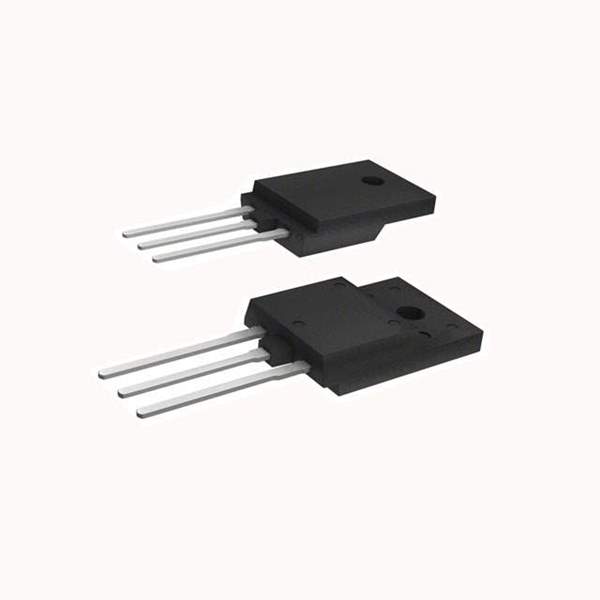

The BCR16PM-12LG is a triac manufactured by Renesas Electronics America. Triacs are three-terminal AC switches that are triggered into conduction by a current pulse at the gate terminal. They are commonly used for controlling AC power to a load, such as in light dimmers, motor speed controls, and solid-state relays. This specific model belongs to the BCR series, known for its robustness and suitability for a variety of AC power control applications.

Applications

• Light dimmers: Used to precisely control the brightness of lights in residential and commercial applications.
• Motor speed controls: Found in appliances and industrial equipment for regulating the speed of AC motors.
• Solid-state relays (SSRs): Acts as the switching element within SSRs to control AC loads in various automation systems.
• Heater controls: Used for temperature regulation in electric heaters and industrial heating systems.
• AC power switching: General purpose AC power switching for numerous electronic devices and systems.

Features

• High blocking voltage: Withstands high voltage in the off-state, enhancing safety and reliability.
• Low on-state voltage: Reduces power dissipation during conduction, improving energy efficiency.
• High surge current capability: Handles large current surges without damage, ensuring reliable performance under transient conditions.
• Sensitive gate triggering: Requires a small gate current for triggering, allowing for easy integration with control circuits.
• Insulated type: Provides electrical isolation between terminals and the mounting base for improved safety.

Benefits

• Precise AC power control: Allows for precise control of AC power delivered to the load.
• Reliable and consistent performance: Offers reliable and consistent switching performance across a wide range of operating conditions.
• Simplified circuit implementation: Easy to incorporate into various circuit designs due to sensitive gate triggering.
• Reduced power losses: Low on-state voltage minimizes power dissipation and improves overall energy efficiency.
• Enhanced operational safety: High blocking voltage and surge current capability contribute to enhanced safety.

Additional Details

The BCR16PM-12LG typically boasts a blocking voltage rating of 600V and an on-state current rating of 16A. Its gate trigger current is usually in the milliampere range, facilitating compatibility with low-power control circuits. The 'LG' designation signifies lead-free construction. This triac is commonly packaged in a TO-220 insulated package.
