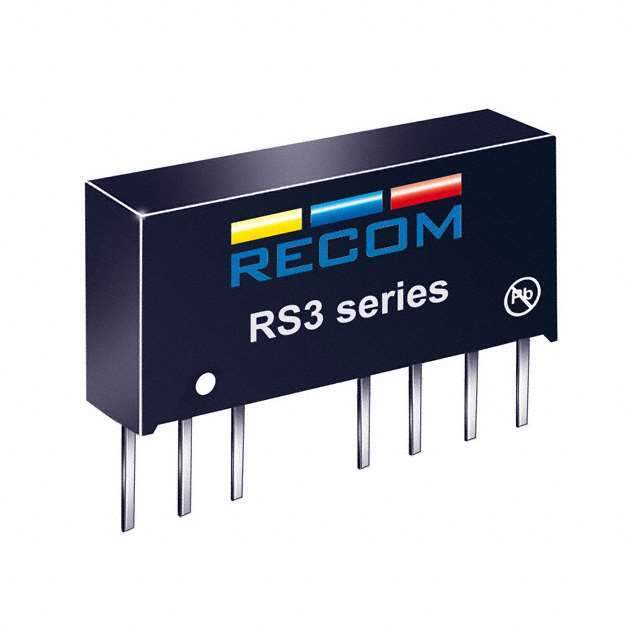

RS3-4812DZ/H3 Real Image
Same model may have multiple batches, images only for reference.

RS3-4812DZ/H3

Part No RS3-4812DZ/H3
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 3W 20-60VIN +/-12VOUT
Datasheet
RS3-4812DZ/H3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Recom Power
Packaging Tube/Rail
Status Active
Type Isolated Module
Number of Outputs 2
Minimum Input Voltage 20V
Maximum Input Voltage 60V
Nominal Output Voltage 1 12V
Nominal Output Voltage 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3W
Isolation Voltage 3kV (3000V)
Applications ITE (Commercial), Medical
Features Remote On/Off, SCP
Temperature Range - Operating -40°C to 71°C
Efficiency 80%
Mounting Through Hole
Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Control Features Enable, Active Low
Win Source Part Number 141727-RS3-4812D
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RS3-4812DZ/H3 CAD Model

Description

The ECONOLINE RS3 (3W) isolated module is a power supply component designed for use in commercial and medical applications.

  • Voltage Isolation: 3 kV
  • Outputs: Two outputs with a maximum output current of 125mA each
  • Input Voltage Range: Between 20V and 60V
  • Output Voltage for Output 1: 12V
  • Output Voltage for Output 2: -12V
  • Mounting: Through-hole technology
  • Packaging: Tube/rail
  • Features: SCP and remote on/off
  • Efficiency Rating: 80%
  • Temperature Range during Operation: Between -40°C and 71°C
  • ECCN Rated: EAR99
  • Manufacturer: Recom Power
  • Popularity: Medium
  • Supply and Demand Status: Limited supply and demand
