Same model may have multiple batches, images only for reference.

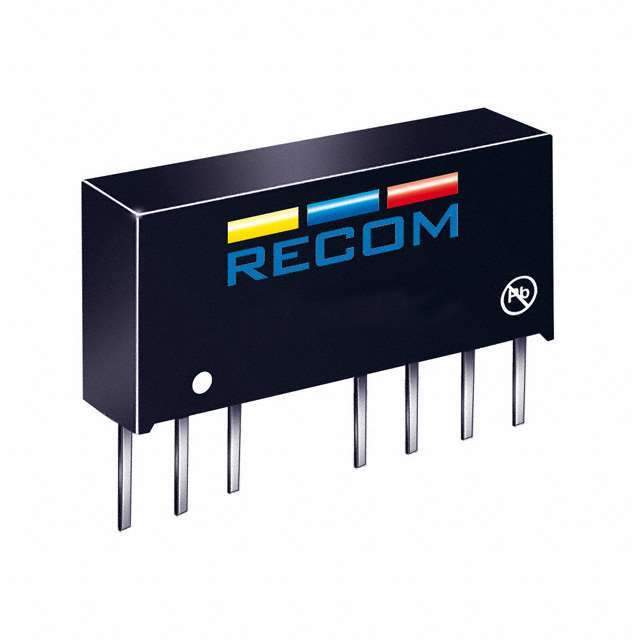

RS-0505S Real Image
Same model may have multiple batches, images only for reference.

RS-0505S

Part No RS-0505S
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2W / Isolated Module DC DC Converter 1 Output 5V 400mA 4.5V - 9V Input
Datasheet
RS-0505S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Recom Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 5V
Current - Output (Max) 400mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -45°C ~ 85°C
Efficiency 75%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Control Features Enable, Active Low
Base Product Number RS-0505
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 10000714,RS0505S,945-1309,Q8895280
Standard Package 22
Win Source Part Number 1335322-RS-0505S
Ultra Librarian 3D Model Ultra Librarian RS-0505S CAD Model

Description

The Recom Power 1335322-RS-0505S is an isolated module DC-DC converter that comes with remote On/Off and SCP features.

  • Size: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
  • Applications: ITE (Commercial)
  • Power: 2 W
  • Control Features: Enable and Active Low
  • Voltage Isolation: 1 kV
  • Outputs: One output
  • Maximum Current Output: 400mA
  • Input Voltage Range: from 4.5V to 9V
  • Output Voltage: 5V
  • Efficiency: 75%
  • Operating Temperature: -45°C ~ 85°C
  • Package: 22 standard modules
  • Mounting: Through hole
  • ECCN: EAR99
  • Compliance: ROHS3 compliant
