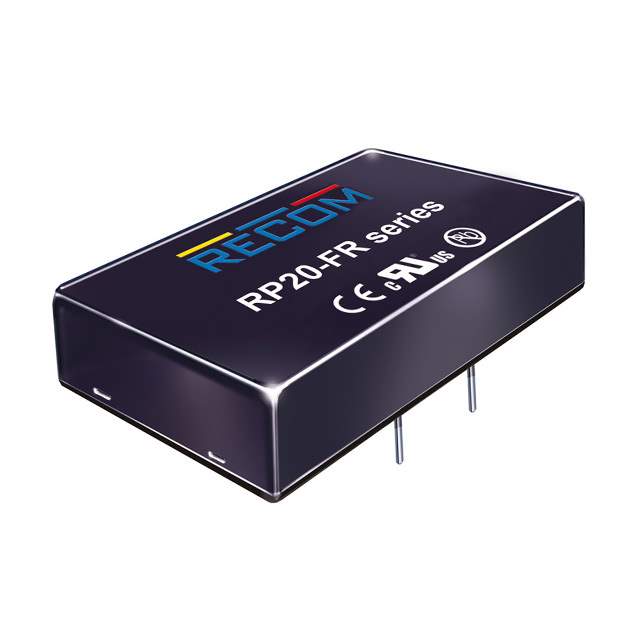

Same model may have multiple batches, images only for reference.

RP20-11015SFR/P

Name: RP20-11015SFR/P
Brand: Recom Power
SKU: 1029023
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RP20-11015SFR/P
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 20W / Isolated Module DC DC Converter 1 Output 15V 1.33A 43V - 160V Input
Datasheet	RP20-11015SFR/P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	POWERLINE RP20-FR (20W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	43V
Voltage - Input (Max)	160V
Voltage - Output 1	15V
Current - Output (Max)	1.33A
Power (Watts)	20 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial), Railway
Features	Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 79°C
Efficiency	88%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	RP20-11015
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	30003799
Standard Package	9
Win Source Part Number	1029023-RP20-11015SFR/P
Ultra Librarian 3D Model	Ultra Librarian RP20-11015SFR/P CAD Model

Alternative Products

Description

The RP20-11015SFR/P is an isolated module type DC-DC converter from Recom Power's POWERLINE RP20-FR series.

Power Rating: 20W
Efficiency: 88%
Control Features: Remote on/off, OCP, OVP, SCP, and UVLO
Package/Case: 6-DIP module
Dimensions: 2.00 inches L x 1.00 inches W x 0.40 inches H (50.8mm x 25.4mm x 10.2mm)
Voltage Isolation: 1.6 kV
Number of Outputs: 1
Maximum Output Current: 1.33A
Applications: ITE (Commercial) and Railway
