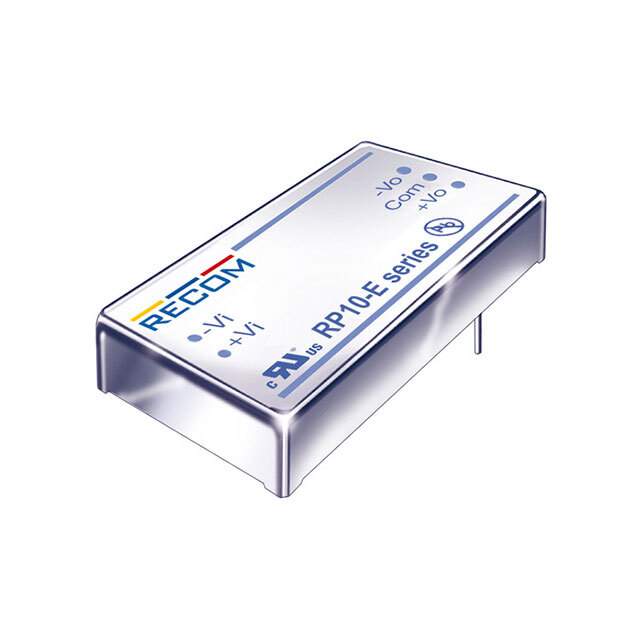

Same model may have multiple batches, images only for reference.

RP10-2412DE

Name: RP10-2412DE
Brand: Recom Power
SKU: 1204573
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	RP10-2412DE
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 10W / Isolated Module DC DC Converter 2 Output 12V -12V 416mA, 416mA 18V - 36V Input
Datasheet	RP10-2412DE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	POWERLINE RP10-E (10W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	416mA, 416mA
Power (Watts)	10 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	OCP, OVP, SCP
Temperature Range - Operating	-25°C ~ 85°C
Efficiency	84%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number	RP10-2412
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	30000325,RP102412DE
Standard Package	9
Win Source Part Number	1204573-RP10-2412DE
Ultra Librarian 3D Model	Ultra Librarian RP10-2412DE CAD Model

Alternative Products

Description

The RP10-2412DE is a 10W isolated module from the POWERLINE RP10-E series of DC-DC converters.

Manufacturer: POWERLINE
Series: RP10-E
Application: Commercial
Package: 6-DIP
Mounting Type: Through-Hole
Output Voltages: 12V and -12V
Input Voltage: 18V to 36V
Voltage Isolation: 1.6 kV
Protection: Overcurrent, Overvoltage, and Short Circuit Protection
Operating Temperature: -25°C to 85°C
Efficiency: 84%
Packaging: Tube, 9 units
Alternative Part: 30000325
Compliance: EAR99 compliant and unaffected by REACH.
