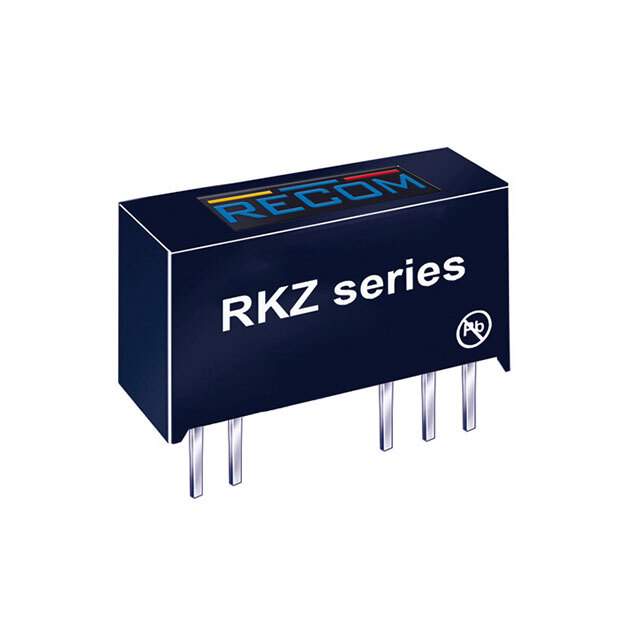

Same model may have multiple batches, images only for reference.

RKZ-241509D/P

Name: RKZ-241509D/P
Brand: Recom Power
SKU: 1316391
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	RKZ-241509D/P
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V -9V 2W / Isolated Module DC DC Converter 2 Output 15V -9V 66mA, 111mA 21.6V - 26.4V Input
Datasheet	RKZ-241509D/P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Recom Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	15V
Voltage - Output 2	-9V
Current - Output (Max)	66mA, 111mA
Power (Watts)	2 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	81%
Mounting	Through Hole
Case / Package	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Base Product Number	RKZ-241509
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	10017012
Standard Package	25
Win Source Part Number	1316391-RKZ-241509D/P
Ultra Librarian 3D Model	Ultra Librarian RKZ-241509D/P CAD Model

Alternative Products

Description

The Recom Power RKZ-241509D/P is a 2W, 3 kV isolated module DC DC converter that has 2 outputs of 15V - 66mA and -9V - 111mA respectively, and an input of 21.6V - 26.4V.

Package: 7-SIP Module, 5 Leads
Mounting: Through Hole
Operating Temperature Range: -40°C ~ 85°C
Category: Power Supplies - Board Mount>DC DC Converters
MSL Level: 1 (Unlimited)
REACH Status: REACH Unaffected
HTSUS: 8504.40.9580
Other Part Numbers: 10017012
