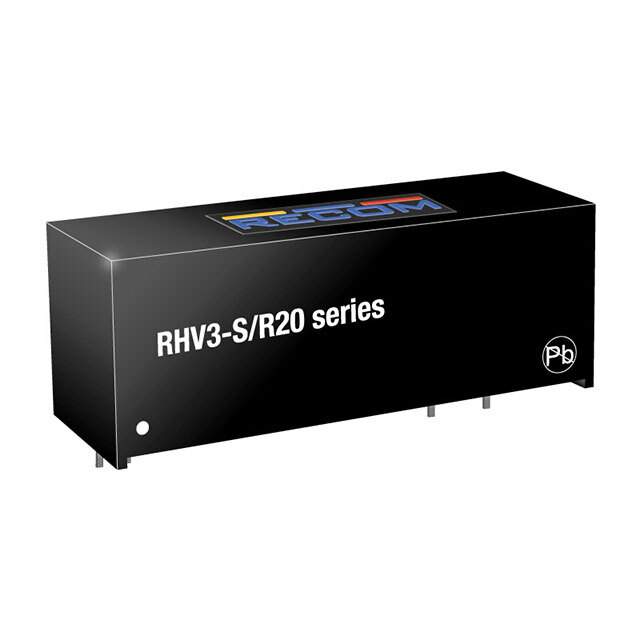

RHV3-2412S/R20 Real Image
Same model may have multiple batches, images only for reference.

RHV3-2412S/R20

Part No RHV3-2412S/R20
Manufacturer Recom Power
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER 12V 3W / Isolated Module DC DC Converter 1 Output 12V 250mA 21.6V - 26.4V Input
Datasheet
RHV3-2412S/R20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Recom Power
Series ECONOLINE RHV3 (3W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 12V
Current - Output (Max) 250mA
Power (Watts) 3 W
Voltage - Isolation 20 kV
Applications ITE (Commercial), Laboratory
Temperature Range - Operating -40°C ~ 80°C
Efficiency 80%
Mounting Type Through Hole
Package / Case 16-SIP Module, 4 Leads
Dimension 1.77" L x 0.59" W x 0.67" H (45.0mm x 15.0mm x 17.0mm)
Base Product Number RHV3-2412
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 945-RHV3-2412S/R20,10019671
Standard Package 10
Win Source Part Number 1103628-RHV3-2412S/R20
Ultra Librarian 3D Model Ultra Librarian RHV3-2412S/R20 CAD Model

Description

The ECONOLINE RHV3 (3W) is an isolated module DC/DC converter.

  • Application: ITE (Commercial) and Laboratory
  • Power Rating: 3 watts
  • Voltage Input: 21.6V to 26.4V
  • Number of Outputs: 1
  • Maximum Output Current: 250mA
  • Voltage Output: 12V
  • Efficiency: 80%
  • Package: 16-SIP module, 4 leads
  • Temperature Range: -40°C ~ 80°C
  • Compliance: ECCN EAR99
