Same model may have multiple batches, images only for reference.

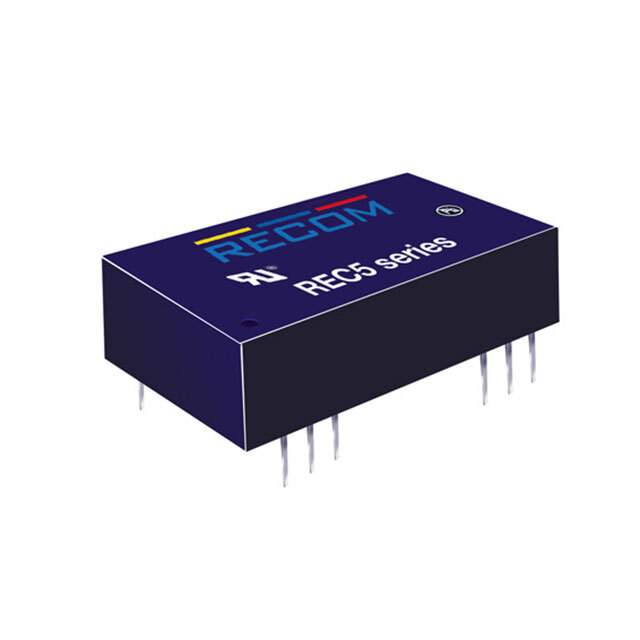

REC5-1205SRW/H6/A/M/CTRL/X2 Real Image
Same model may have multiple batches, images only for reference.

REC5-1205SRW/H6/A/M/CTRL/X2

Part No REC5-1205SRW/H6/A/M/CTRL/X2
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 5W / Isolated Module DC DC Converter 1 Output 5V 1A 9V - 18V Input
Datasheet
REC5-1205SRW/H6/A/M/CTRL/X2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Recom Power
Series ECONOLINE REC5 (5W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 5V
Current - Output (Max) 1A
Power (Watts) 5 W
Voltage - Isolation 6 kV
Applications ITE (Commercial), Medical
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 75°C
Efficiency 81%
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Dimension 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Control Features Enable, Active Low
Base Product Number REC5-1205
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 10017683
Standard Package 15
Win Source Part Number 1034116-REC5-1205SRW/H6/A/M/CTRL/X2
Ultra Librarian 3D Model Ultra Librarian REC5-1205SRW/H6/A/M/CTRL/X2 CAD Model

Description

The REC5-1205SRW/H6/A/M/CTRL/X2 is an isolated module type DC-DC converter from the ECONOLINE REC5 series with a power output of 5 watts.

  • Remote On/Off: Yes
  • SCP: Yes
  • Voltage Isolation: 6 kV
  • Output Configuration: Single
  • Maximum Output Current: 1A
  • Input Voltage Range: 9V to 18V
  • Output Voltage: 5V
  • Efficiency: 81%
  • Mounting Type: Through Hole
  • Package / Case: 24-DIP Module, 8 Leads
  • Applications: ITE (Commercial) and Medical
  • Operating Temperature: -40°C to 75°C
  • Dimensions: 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
  • Alternative Parts: REC5-0505SRW/H4/A, JCD0505S05, REC5-0505SRW/H6/A, REC5-0512SRW/H4/A, JCD0505S12, JCD0505S3V310017683, and REC5-1205SRWH6AMCTRLX2
