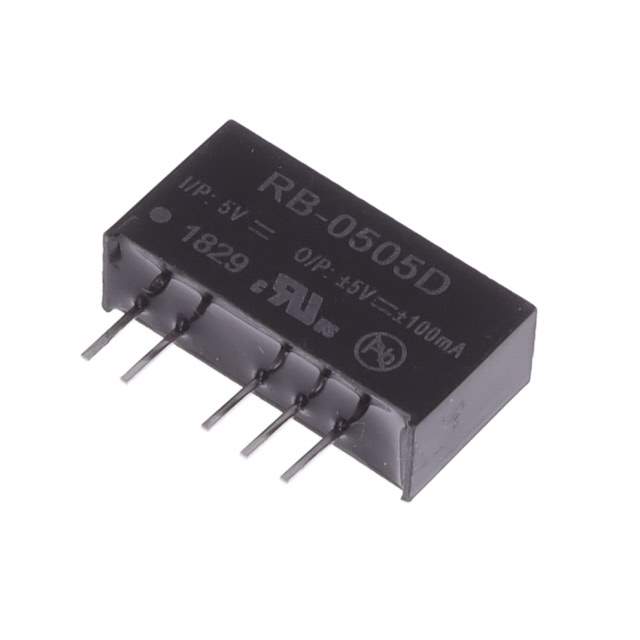

RB-0505D Real Image
Same model may have multiple batches, images only for reference.

RB-0505D

Part No RB-0505D
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W
Datasheet
RB-0505D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Estimated Pruduction Lead Time 9 Weeks
Features Isolated Module DC DC Converter 2 Output 5V -5V - 100mA, 100mA 4.5V - 5.5V Input
Manufacturer Recom Power
Series ECONOLINE RB (1W)
Package Tube
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole
Package 7-SIP Module, 5 Leads
Family Name RB-0505
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number RB0505D, 945-1102, 10000106
Quantity per package 25
Popularity High
Supply and Demand Status Limited
Win Source Part Number 891165-RB-0505D
Ultra Librarian 3D Model Ultra Librarian RB-0505D CAD Model

Description

The Recom Power RB-0505D is an isolated module DC DC converter with 2 outputs.

  • Outputs: 5V and -5V and a current of 100mA each
  • Operating Temperature: -40°C ~ 85°C
  • Input: 4.5V - 5.5V
  • Package: 7-SIP module with 5 leads
  • Mounting: through hole
  • Series: ECONOLINE RB (1W)
  • Popularity: high
  • Supply and Demand: limited
  • Lead Time: 9 weeks
