Same model may have multiple batches, images only for reference.

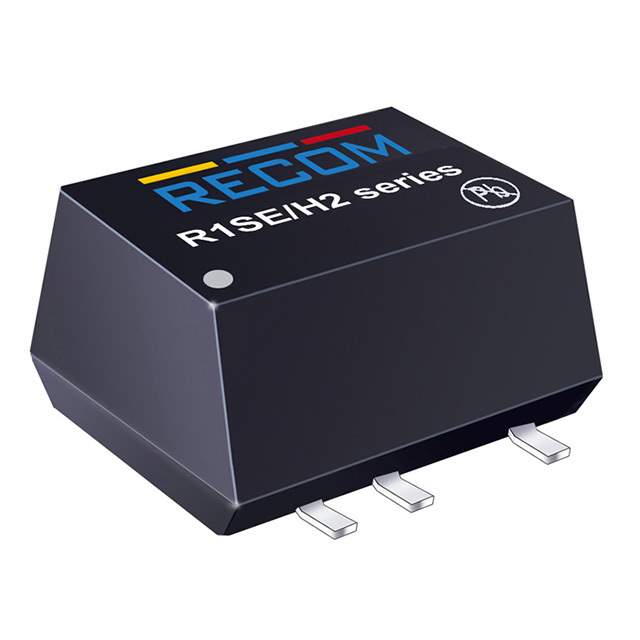

R1SE-0505/H2-R Real Image
Same model may have multiple batches, images only for reference.

R1SE-0505/H2-R

Part No R1SE-0505/H2-R
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet
R1SE-0505/H2-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Recom Power
Series ECONOLINE R1SE-H2 (1W)
Package Tape & Reel
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 2 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 100°C
Efficiency 75%
Mounting Type Surface Mount
Package / Case 8-SMD Module, 5 Leads
Size / Dimension 0.50" L x 0.42" W x 0.26" H (12.8mm x 10.7mm x 6.7mm)
Base Product Number R1SE-0505
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1340676-R1SE-0505/H2-R
Ultra Librarian 3D Model Ultra Librarian R1SE-0505/H2-R CAD Model

Description

The ECONOLINE R1SE-H2 (1W) is an isolated module power supply with a package size of 0.50" L x 0.42" W x 0.26" H (12.8mm x 10.7mm x 6.7mm). It is designed for ITE (Commercial) applications.

  • Series: ECONOLINE R1SE-H2 (1W)
  • Applications: ITE (Commercial)
  • Voltage - Isolation: 2 kV
  • Current - Output (Max): 200mA
  • Voltage - Output: 5V
  • Efficiency: 75%
  • Mounting Type: Surface Mount
  • Package / Case: 8-SMD Module, 5 Leads
  • Size / Dimension: 0.50" L x 0.42" W x 0.26" H (12.8mm x 10.7mm x 6.7mm)
  • Operating Temperature: -40°C ~ 100°C
  • Manufacturer: Recom Power
