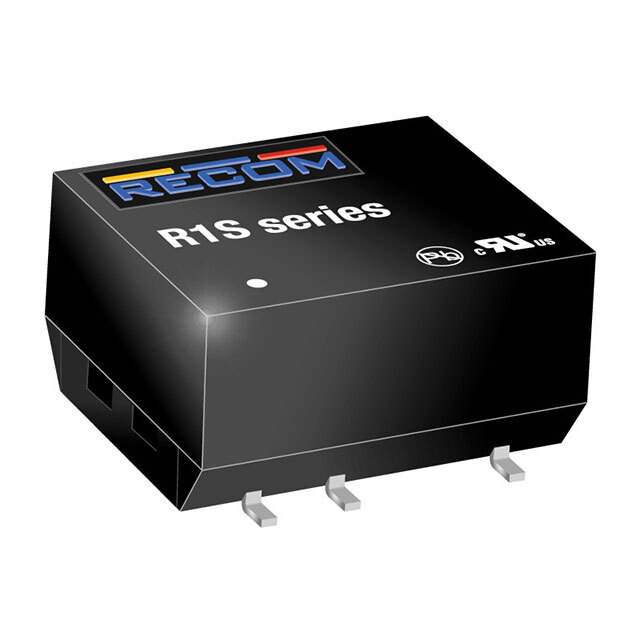

R1S12-2424/H Real Image
Same model may have multiple batches, images only for reference.

R1S12-2424/H

Part No R1S12-2424/H
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 1W / Isolated Module DC DC Converter 1 Output 24V 42mA 21.6V - 26.4V Input
Datasheet
R1S12-2424/H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Recom Power
Series ECONOLINE R1S (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 24V
Current - Output (Max) 42mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial) , Medical
Features SCP
Temperature Range - Operating -40°C ~ 100°C
Efficiency 84%
Mounting Type Surface Mount
Package / Case 12-SMD Module, 10 Leads
Size / Dimension 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
Base Product Number R1S12-2424
Standard Package 33
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1350060-R1S12-2424/H
Ultra Librarian 3D Model Ultra Librarian R1S12-2424/H CAD Model

Description

The ECONOLINE R1S (1W) isolated module DC-DC converter is a reliable and efficient power supply board mount.

  • Input Voltage: 21.6V to 26.4V
  • Output Voltage: 24V
  • Efficiency: 84%
  • Features: SCP
  • Package: tube
  • Size: 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
  • Applications: ITE (Commercial) and Medical
