Same model may have multiple batches, images only for reference.

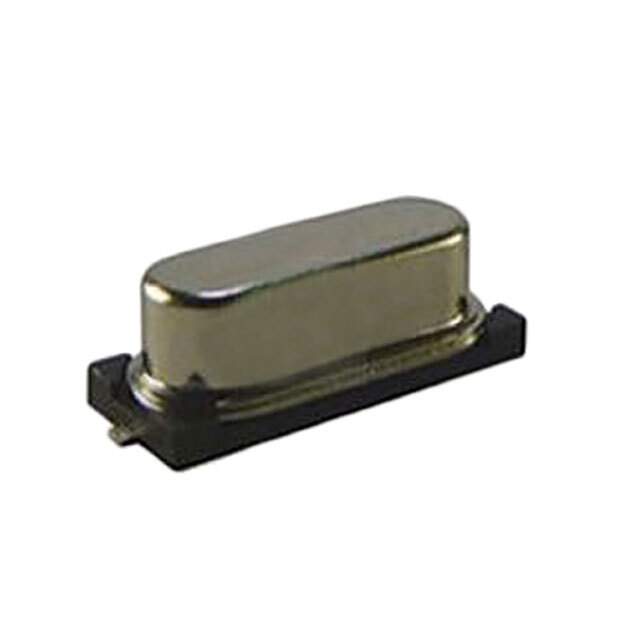

AS-24.000-18-SMD-TR Real Image
Same model may have multiple batches, images only for reference.

AS-24.000-18-SMD-TR

Part No AS-24.000-18-SMD-TR
Manufacturer Raltron Electronics Corporation
Catalog Oscillators
Description CRYSTAL 24.0000MHZ 18PF SMD / 24 MHz ±30ppm Crystal 18pF 40 Ohms HC-49/US
Datasheet
AS-24.000-18-SMD-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Raltron Electronics
Series AS-SMD
Package Tape & Reel
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.472" L x 0.189" W (12.00mm x 4.80mm)
Height - Seated (Max) 0.181" (4.60mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 2151-AS-24.000-18-SMD-TR,2151-AS-24.000-18-SMD-TRCT,2151-AS-24.000-18-SMD-TRDKR
Standard Package 1,000
Win Source Part Number 1165453-AS-24.000-18-SMD-TR
Ultra Librarian 3D Model Ultra Librarian AS-24.000-18-SMD-TR CAD Model

Description

The AS-24.000-18-SMD-TR is a MHz crystal oscillator manufactured by Raltron Electronics.

  • Frequency: 24MHz
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±50ppm
  • Load Capacitance: 18pF
  • ESR (Equivalent Series Resistance): 40 Ohms
  • Package/Case Size: HC-49/US
  • Height-Seated (Max): 0.181" (4.60mm)
  • Operating Mode: Fundamental
  • Temperature Range: -20°C to 70°C
  • Mounting Type: Surface Mount
  • Packaging: Tape and reel
  • Standard Package: 1,000
