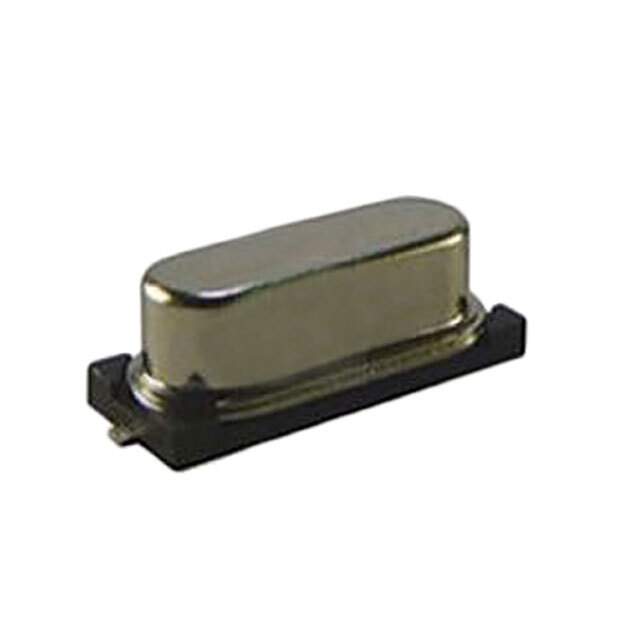

AS-19.6608-20-SMD-TR Real Image
Same model may have multiple batches, images only for reference.

AS-19.6608-20-SMD-TR

Part No AS-19.6608-20-SMD-TR
Manufacturer Raltron Electronics Corporation
Catalog Crystals
Description XTAL 19.6608MHZ 20PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Raltron Electronics
Packaging Reel
Type MHz Crystal
Frequency 19.6608MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Style SMD
Manufacturer Package HC-49/US
Dimension 0.472" L x 0.189" W (12.00mm x 4.80mm)
Height - Seated (Maximum) 0.181" (4.60mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805214-AS-19.6608-20-SMD-TR
Ultra Librarian 3D Model Ultra Librarian AS-19.6608-20-SMD-TR CAD Model

Description

The Raltron Electronics 805214-AS-19.6608-20-SMD-TR is a MHz crystal that is ideal for various electronic applications.

  • Frequency: 19.6608MHz
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±50ppm
  • ESR (Equivalent Series Resistance): 40 Ohms
  • Load Capacitance: 20pF
  • Mode: Fundamental
  • Temperature Range: -20°C to 70°C
  • Manufacturer Package: HC-49/US
  • Mounting Style: SMD
  • Dimension: 0.472" L x 0.189" W (12.00mm x 4.80mm)
  • Maximum Seated Height: 0.181" (4.60mm)
  • Packaging: Reel
  • Manufacturer Pack Quantity: 1,000
