Same model may have multiple batches, images only for reference.

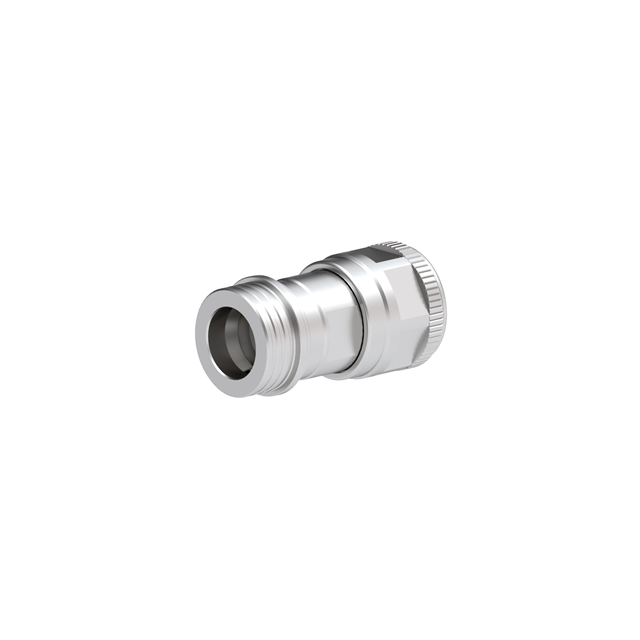

R191757000 Real Image
Same model may have multiple batches, images only for reference.

R191757000

Part No R191757000
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF)
Description QN MALE - N MALE ADAPTER / Adapter Coaxial Connector N Plug, Male Pin To QN Plug, Male Pin 50Ohm
Datasheet
R191757000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Adapters
Mfr Radiall USA, Inc.
Package Bulk
Adapter Type Plug to Plug
Conversion Type Between Series
Adapter Series N to QN
Center Gender Male to Male
Convert From (Adapter End) N Plug, Male Pin
Convert To (Adapter End) QN Plug, Male Pin
Impedance 50Ohm
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Push-Pull, Threaded
Frequency - Max 6 GHz
Center Contact Plating Silver
Body Material Brass
Body Finish White Bronze
Center Contact Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles 100
Temperature Range - Operating -55°C ~ 125°C
Base Product Number R19175
Standard Package 10
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1349471-R191757000
Ultra Librarian 3D Model Ultra Librarian R191757000 CAD Model

Description

The R191757000 is a plug to plug, male to male coaxial connector (RF) adapter from Radiall USA, Inc.

  • Manufacturer: Radiall USA, Inc.
  • Product Name: R191757000
  • Fastening Type: Push-Pull and Threaded
  • Ingress Protection: -
  • Maximum Frequency: 6 GHz
  • Impedance: 50Ohm
  • Material: Brass
  • Style: Straight
  • Body Finish: White Bronze
  • Center Contact Material: Brass
  • Center Contact Plating: Silver
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Mating Cycles: 100
  • Converts From: N Plug, Male Pin
  • Converts To: QN Plug, Male Pin
  • Conversion Type: Between Series
  • Mounting Type: Free-Hanging (In-Line)
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • HTSUS: 8536.69.4010
  • Package: Bulk
  • Standard Package: 10
