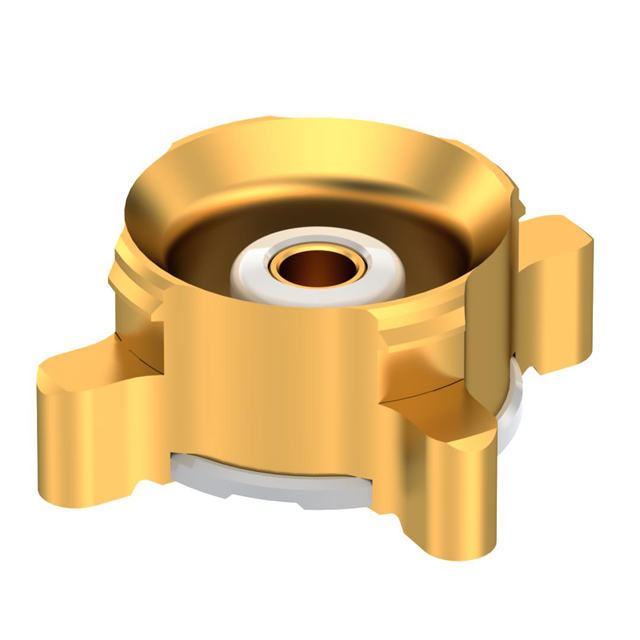

Same model may have multiple batches, images only for reference.

R223424000

Name: R223424000
Brand: Radiall USA, Inc.
SKU: 1030738
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	R223424000
Manufacturer	Radiall USA, Inc.
Catalog	Coaxial Connectors (RF)
Description	MMBX F F SMT C100 / MMBX Connector Jack, Female Socket 50Ohm Surface Mount Solder
Datasheet	R223424000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Coaxial Connectors (RF)
Mfr	Radiall USA, Inc.
Package	Bulk
Connector Style	MMBX
Connector Type	Jack, Female Socket
Contact Termination	Solder
Shield Termination	Solder
Impedance	50Ohm
Mounting	SMD (SMT)
Fastening Type	Snap-On
Frequency - Max	12.4 GHz
Number of Ports	1
Housing Color	Gold
Center Contact Material	Brass
Body Material	Brass
Body Finish	Gold
Center Contact Plating	Gold
Dielectric Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 155°C
Voltage Rating	330 V
Mating Cycles	100
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4010
Other Names	R223.424.000,2201-R223424000
Standard Package	100
Win Source Part Number	1030738-R223424000
Ultra Librarian 3D Model	Ultra Librarian R223424000 CAD Model

Alternative Products

Description

The R223424000 is a coaxial connector (RF) with a jack, female socket connector type.

Manufacturer: Radiall USA, Inc.
Package: Bulk
Standard Package: 100
Mounting: Surface-mount technology (SMT)
Impedance: 50Ohm
Frequency - Max: 12.4 GHz
Voltage Rating: 330 V
RoHS: Unaffected
ECCN: EAR99
