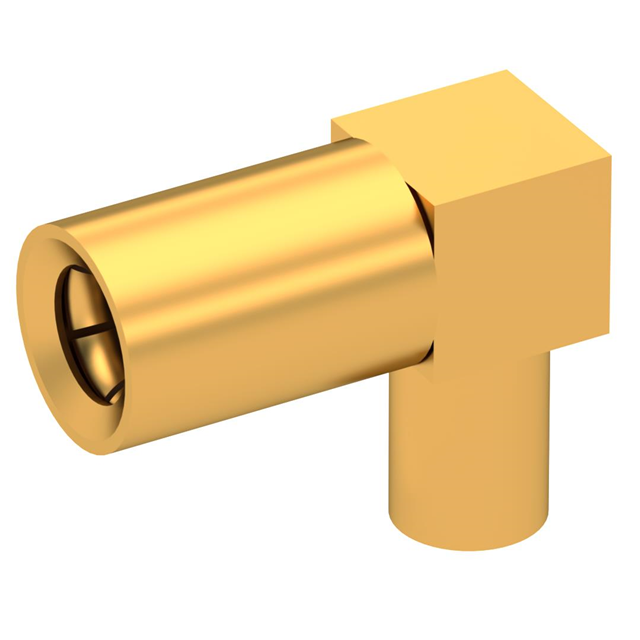

7405-1521-003 Real Image
Same model may have multiple batches, images only for reference.

7405-1521-003

Part No 7405-1521-003
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF) - Assemblies
Description SSMB F RA NA CR 2.6/50S
Datasheet
7405-1521-003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 2001314-7405-1521-003
Win Source Part Number Cross
Manufacturer Radiall USA, Inc.
Category Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Package Bulk
Product Status Active
Connector Type Plug, Female Socket
Mounting Type Free Hanging (In-Line), Right Angle
Dielectric Material Polytetrafluoroethylene (PTFE)
Center Contact Material Beryllium Copper
Ultra Librarian 3D Model Ultra Librarian 7405-1521-003 CAD Model

Description

The Radiall USA, Inc. SSMB series coaxial connector is a plug female socket assembly.

  • Fastening Type: Snap-on
  • Mounting Type: Free Hanging (In-Line), Right Angle
  • Center Contact Material: Beryllium Copper
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
