Same model may have multiple batches, images only for reference.

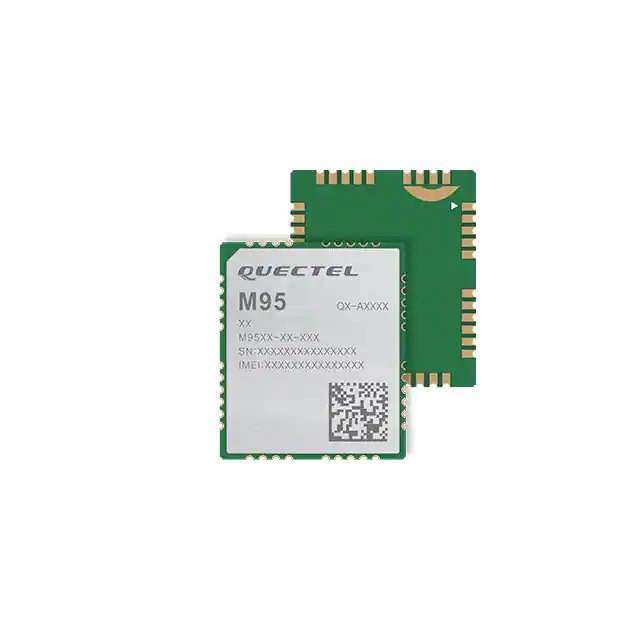

M95FA-03-STDN

Name: M95FA-03-STDN
Brand: Quectel
SKU: 845325
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	M95FA-03-STDN
Manufacturer	Quectel
Catalog	RF Transceiver Modules
Description	RF TXRX MOD NAVIGATION SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF and Wireless - RF Transceiver Modules and Modems
Mfr	Quectel
Package	Tape & Reel
Product Status	Obsolete
Programmable	Not Verified
RF Family/Standard	Navigation
Protocol	GSM, GPRS
Frequency	850MHz, 900MHz, 1.8GHz, 1.9GHz
Data Rate	85.6kbps
Sensitivity	-109dBm
Serial Interfaces	PCM, UART
Antenna Type	Antenna Not Included
Voltage - Supply	3.3V ~ 4.6V
Current - Receiving	1.3mA
Mounting Type	Surface Mount
Temperature Range - Operating	-40°C ~ 85°C
Package / Case	Module
Base Product Number	M95
Standard Package	250 pcs
MSL Level	3 (168 Hours)
ECCN	5A992C SC
HTSUS	8517.62.0090
Win Source Part Number	845325-M95FA-03-STDN
Ultra Librarian 3D Model	Ultra Librarian M95FA-03-STDN CAD Model

Description

The M95FA-03-STDN is an RF transceiver module and modem designed for GSM and GPRS applications. Manufactured by Quectel.

Frequencies: 850MHz, 900MHz, 1.8GHz, and 1.9GHz
Data Rate: 85.6kbps
Sensitivity: -109dBm
Antenna: Not Included
Programmable: Yes (but not verified)
Voltage Supply: 3.3V to 4.6V
Mounting Type: Surface Mount
Package: Module
Temperature Range: -40°C to 85°C
ECCN: 5A992C SC
Counterfeit Probability: 66%
MSL Level: 3 (168 hours)
HTSUS Code: 8517.62.0090
Product Status: Obsolete
