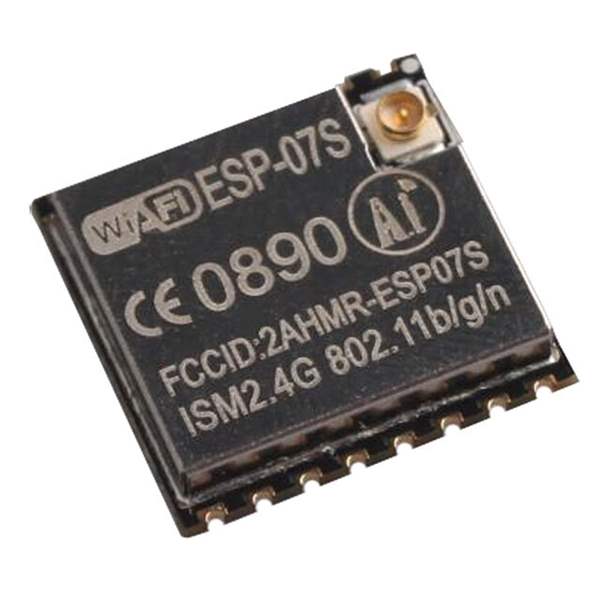

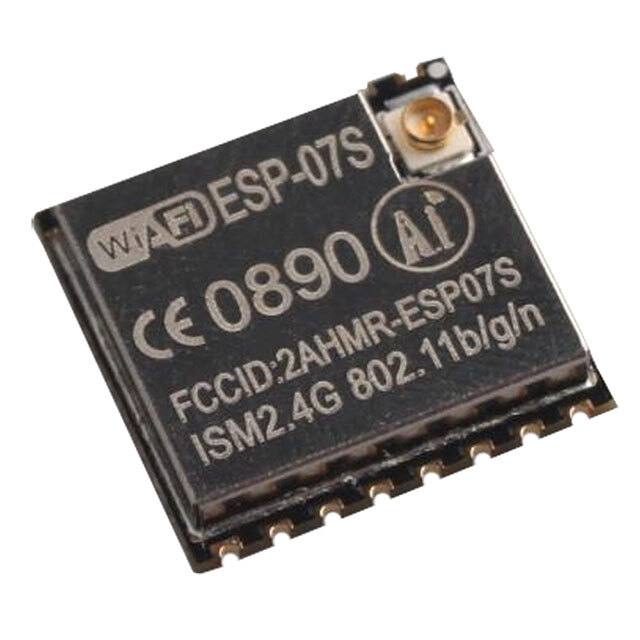

ESP-07S RF Solutions ESP-07S Real Image ESP-07S label picture
Same model may have multiple batches, images only for reference.
ESP-07S RF Solutions ESP-07S Real Image ESP-07S label picture
ESP-07S RF Solutions ESP-07S Real Image ESP-07S label picture
Same model may have multiple batches, images only for reference.

ESP-07S

Part No ESP-07S
Manufacturer RF Solutions
Catalog RF Transceiver Modules
Description ESP8266 WIFI 802.11B/G/N 160MBIT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer RF Solutions
RF Family/Standard WiFi
Protocol 802.11b/g/n
Modulation 64-QAM, BPSK, CCK
Frequency 2.4GHz ~ 2.5GHz
Data Rate 54Mbps
Power - Output 20dBm
Serial Interfaces GPIO, I2C, I2S, PWM, SDIO, SPI, UART
Antenna Type PCB Trace
Supply Voltage (V) 3V ~ 3.6V
Mounting Style SMD
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package Module
Manufacturer Pack Quantity 1
MSL Level Not Applicable
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812239-ESP-07S
Ultra Librarian 3D Model Ultra Librarian ESP-07S CAD Model

Description

The RF Solutions ESP-07S is a surface mount device (SMD) module that operates in the frequency range of 2.4GHz to 2.5GHz, manufactured by RF Solutions.

  • Protocol: 802.11b/g/n
  • Data Rate: 54Mbps
  • Power Output: 20dBm
  • Serial Interfaces: GPIO, I2C, I2S, PWM, SDIO, SPI, UART
  • RF Family/Standard: WiFi
  • Temperature Range: -40°C to 85°C
  • Supply Voltage: 3V to 3.6V
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
