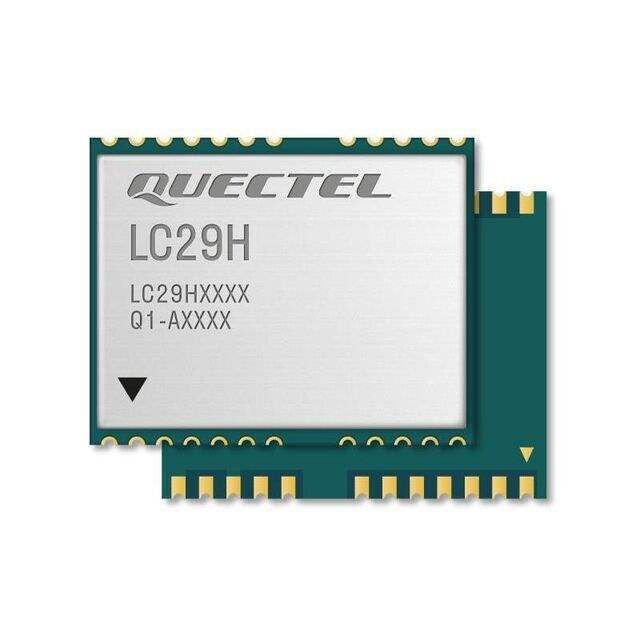

LC29HAAMD Quectel
Same model may have multiple batches, images only for reference.

LC29HAAMD

Part No LC29HAAMD
Manufacturer Quectel
Catalog RF Transceiver Modules
Description RF TXRX MODULE NAVIGATION SMD
Datasheet
LC29HAAMD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310551-LC29HAAMD
Category RF and Wireless >RF Transceiver Modules and Modems
Mfr Quectel
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
RF Family/Standard Navigation
Protocol BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS
Data Rate 3Mbps
Sensitivity -165dBm
Serial Interfaces I2C, SPI, UART, USB
Antenna Type Antenna Not Included
Ultra Librarian 3D Model Ultra Librarian LC29HAAMD CAD Model

Description

  • Multi-GNSS engine for GPS, GLONASS, BDS, Galileo and QZSS
  • Reception of L1 and L5 GNSS bands signals concurrently
  • Integrated DR function (optional)
  • RTK (optional) providing sub-meter accuracy with fast convergence time and outstanding performance
  • Output GNSS and IMU raw data messages (optional)
  • Integrated LNA for high sensitivity
  • Integrated diplexer for noise cancellation
  • UART, I2C and SPI interfaces
  • Integrated AGNSS function
  • Integrated AIC and jamming function
