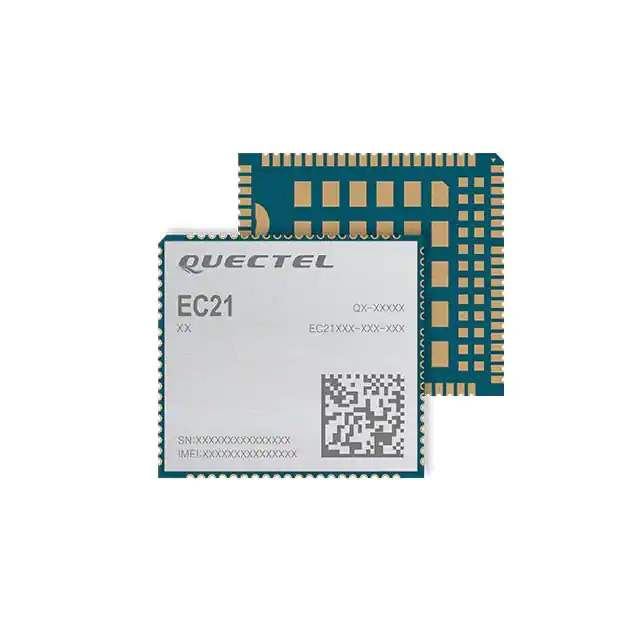

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Quectel
Package Tape & Reel
Product Status Active
Programmable Not Verified
RF Family/Standard Cellular
Protocol LTE
Data Rate 10Mbps
Power - Output 33dBm
Sensitivity -102dBm
Serial Interfaces UART, USB
Antenna Type Antenna Not Included
Voltage - Supply 3V ~ 3.6V
Current - Receiving 34mA
Current - Transmitting 34mA
Mounting Type Card Edge
Temperature Range - Operating -40°C ~ 80°C
Package / Case Module
Base Product Number EC21
Standard Package 250 pcs
MSL Level 3 (168 Hours)
ECCN 5A992C SC
HTSUS 8517.62.0090
Win Source Part Number 917756-EC21VFA-512-STD
Ultra Librarian 3D Model Ultra Librarian EC21VFA-512-STD CAD Model

Description

The 917756-EC21VFA-512-STD is an RF transceiver module and modem designed for LTE protocols. It is part of the Quectel EC21 series.

  • Frequency: Not specified
  • Data Rate: 10Mbps
  • Memory Size: Not specified
  • Antenna: Not included
  • Power Output: 33dBm
  • Sensitivity: -102dBm
  • Current (Receive/Transmit): 34mA
  • Serial Interfaces: UART and USB
  • Voltage Supply: 3V to 3.6V
  • Mounting: Card edge
  • Operating Temperature: -40°C to 80°C
  • ECCN: 5A992C SC
  • MSL Level: 3
  • HTSUS Code: 8517.62.0090
  • Status: Active
